5977711302F

Description：LED RGB CLEAR 4SMD
Series：597
Mfr：Dialight
Package：Strip

SKU:d76fd42693f0 Category: LED Indication - Discrete Brand: Dialight

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

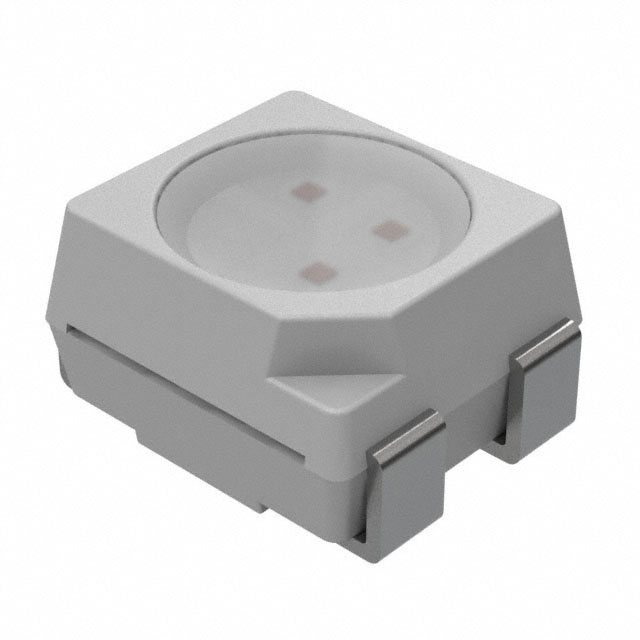

5977711302F is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Dialight. Its product description is LED RGB CLEAR 4SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 5977711302F

Description：LED RGB CLEAR 4SMD
Series：597
Mfr：Dialight
Package：Strip
Color：Red, Green, Blue (RGB)
Configuration：Common Anode
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：80mcd Red, 160mcd Green, 40mcd Blue
Lens Style：Round with Flat Top
Lens Size：2.39mm Dia
Voltage - Forward (Vf) (Typ)：1.9V Red, 3.4V Green, 3.4V Blue
Current - Test：20mA Red, 20mA Green, 20mA Blue
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：626nm Red, 525nm Green, 470nm Blue
Wavelength - Peak：635nm Red, 523nm Green, 468nm Blue
Features：-
Package / Case：4-SMD, J-Lead
Supplier Device Package：4-SMD
Size / Dimension：3.10mm L x 2.84mm W
Height (Max)：1.95mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 5977711302F

5977711302F

LED Indication - Discrete Overview

The Dialight 5977711302F is a surface-mount RGB LED indicator featuring a common anode configuration. It utilizes a 4-pin SMD package with a circular, non-diffused lens and a flat top design to optimize light output. The component provides a wide viewing angle of 120 degrees and operates with a forward current of 20 mA. It is designed for industrial applications within a temperature range of -55°C to 100°C.

LED Indication - Discrete Feature Summary

Common anode RGB configuration for integrated color control
Wide 120-degree viewing angle for enhanced visibility
Circular lens with flat top design for optimized optical performance

LED Indication - Discrete Applications

Industrial equipment status indication
Electronic device front panel signaling
Control board visual feedback systems

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version for electrical tolerances and thermal characteristics. Confirm package dimensions against PCB footprint requirements. Ensure compatibility with reflow soldering profiles specified by the manufacturer. Check for RoHS compliance documentation prior to integration.

LED Indication - Discrete Selection Notes

Select this component when a compact RGB solution with high visibility is required. The common anode structure simplifies circuit design compared to common cathode variants. Consider the 120-degree viewing angle for applications requiring broad line-of-sight coverage. Evaluate thermal management needs given the operating temperature range.

LED Indication - Discrete Part Context

This part belongs to the Dialight 597 series of MicroLED indicators. The series offers various configurations including single-color, bi-color, and multi-color options in standard SMD packages. These components are engineered for reliable performance in demanding electronic environments.
