Product Detailed Parameters
- Description：LED RGB SMD
- Series：*
- Mfr：Dialight
- Package：Tape & Reel (TR)
- Color：-
- Configuration：-
- Lens Color：-
- Lens Transparency：-
- Millicandela Rating：-
- Lens Style：-
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：-
- Current - Test：-
- Viewing Angle：-
- Mounting Type：-
- Wavelength - Dominant：-
- Wavelength - Peak：-
- Features：-
- Package / Case：-
- Supplier Device Package：-
- Size / Dimension：-
- Height (Max)：-
- Grade：-
- Qualification：-
Download product information
Overview

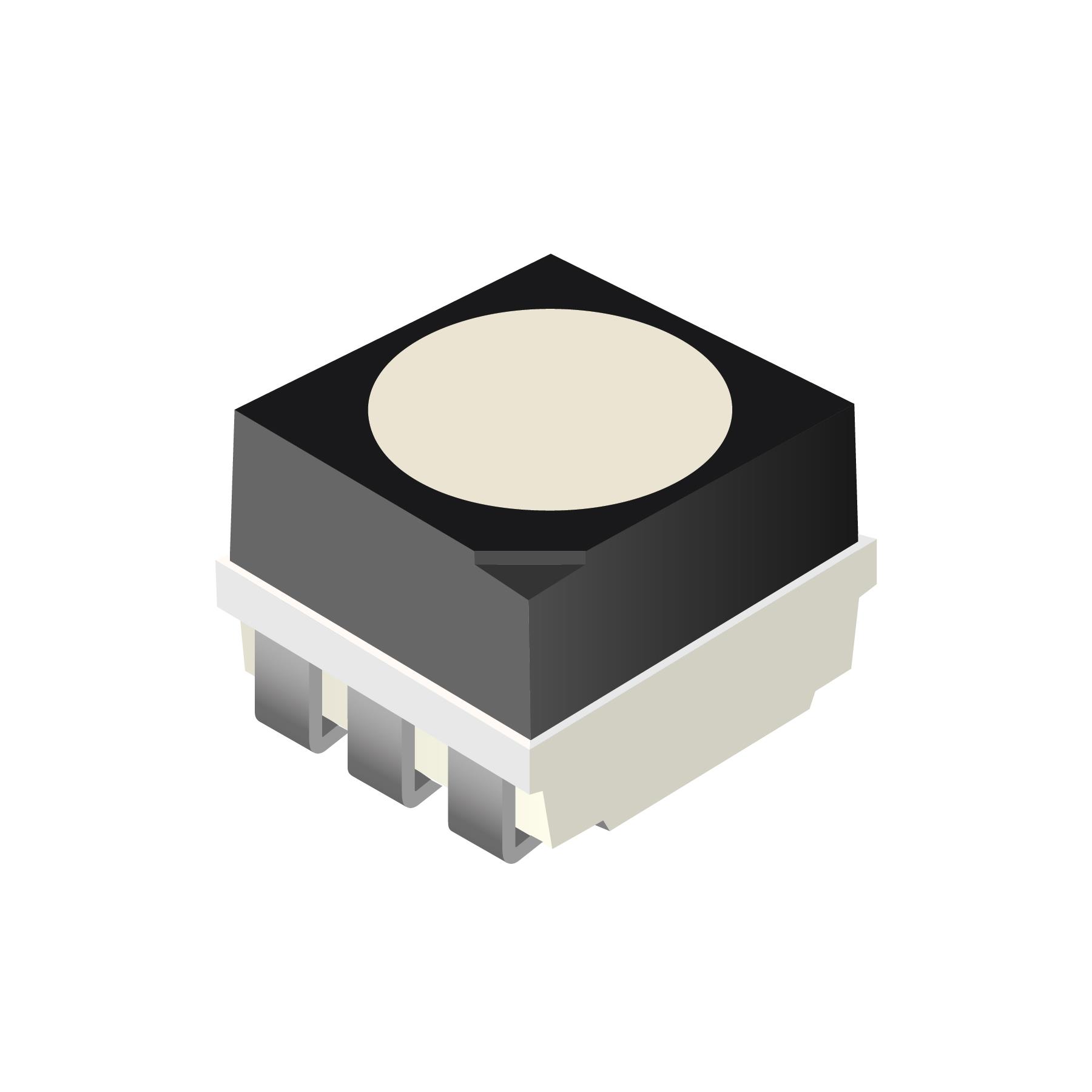

The Dialight 598-8F10-313F is a surface-mount RGB LED component designed for discrete indicator applications. It utilizes a PLCC-6 package configuration to house red, green, and blue emitters within a single unit. The device features a round flat lens shape with water-clear transparency to optimize light transmission. Electrical characteristics include a forward current rating of 20 mA per color channel and a power rating of 60 mW. This multi-color capability allows for full spectrum color mixing in compact electronic designs.
Feature Summary
- Integrates red, green, and blue emitters into a single surface-mount package for versatile color output
- Features a round flat lens design with water-clear transparency for efficient light emission
- Supports standard surface-mount technology (SMD/SMT) installation processes
Applications
- Multi-color status indicators on electronic circuit boards
- Visual signaling devices requiring variable color output
- Compact consumer electronics display panels
Procurement Notes
Verify the specific datasheet version and RoHS compliance status prior to procurement. Confirm that the PLCC-6 footprint matches your PCB layout requirements. Ensure thermal management strategies account for the cumulative heat dissipation of all three color channels operating simultaneously under maximum rated conditions.
Selection Notes
Select this component when space constraints preclude the use of separate discrete LEDs. The PLCC-6 package offers a standardized footprint suitable for automated assembly. Consider the combined forward voltage requirements of the internal chips when designing the driving circuitry to ensure proper current limiting for each individual color channel.
Part Context
This part belongs to the Dialight 598 series of surface-mount LEDs. The series provides various configurations including single-color and multi-color options in different package sizes. The 598-8F10-313F specifically addresses the need for compact, high-intensity RGB lighting solutions in modern electronic assemblies where board real estate is limited.
Replacement Considerations
Direct substitutes include other PLCC-6 RGB LEDs from manufacturers such as Kingbright or Everlight. Verify compatibility regarding pinout definitions, luminous intensity ratings, and peak wavelength specifications before substitution.
