5988020102F

LED Indication - Discrete Overview

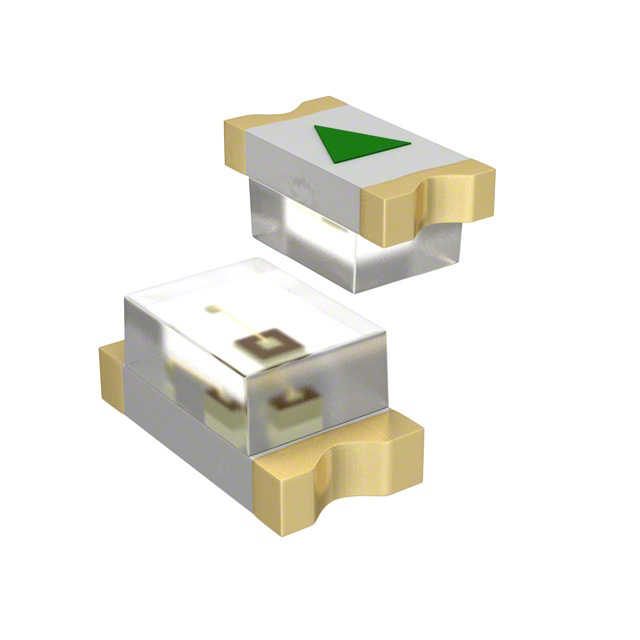

The Dialight 5988020102F is a red surface-mount LED in the 598 series, housed in a 0603 (1608 metric) package. It emits at a dominant wavelength of 625nm with a typical forward voltage of 2V and a viewing angle of 140 degrees. The component features a clear lens and measures 1.60mm in length by 0.80mm in width. This part is obsolete and no longer manufactured.

LED Indication - Discrete Feature Summary

• Red light emission for discrete indication
• Surface mount construction for automated assembly
• Clear lens design for visibility

LED Indication - Discrete Applications

• General electronic status indication
• Panel indicator lights
• Consumer device signaling

LED Indication - Discrete Procurement Notes

This component is officially obsolete and no longer manufactured by Dialight. Procurement must focus on verified replacement parts rather than original stock. Verify that substitute components match electrical parameters and physical dimensions to ensure compatibility with existing designs.

LED Indication - Discrete Selection Notes

Designers should transition to alternative LEDs due to the discontinuation of this specific part number. Evaluate replacements based on matching forward voltage, current ratings, and luminous intensity. Ensure the selected substitute fits the 0603 footprint and maintains required optical characteristics for the application.

LED Indication - Discrete Part Context

Part of the Dialight 598 series of surface mount LEDs. This series offers various colors and packages for general indication purposes. The 5988020102F specifically provides red illumination in a compact form factor suitable for space-constrained electronics.

LED Indication - Discrete Replacement Considerations

Dialight recommends the 5988020107F as a manufacturer-recommended substitute. Other parameter-equivalent options may exist from different manufacturers, requiring verification of pinout and thermal specifications.
