5988220102F

LED Indication - Discrete Overview

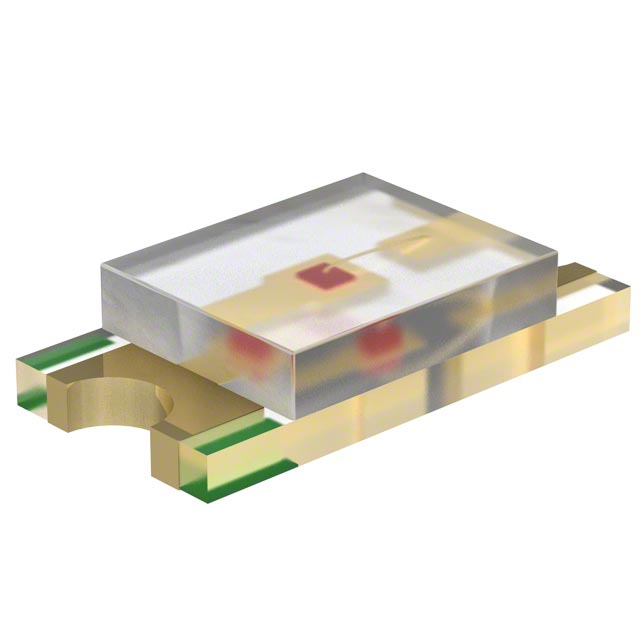

Dialight part number 5988220102F is a red surface-mount LED from the 598 series. It features a clear lens with a rectangular shape and colorless appearance. The component operates at a forward voltage of 2V and emits light at a primary wavelength of 625nm. It has a viewing angle of 140 degrees and an intensity of 150mcd. The package dimensions are 3.20mm in length, 1.60mm in width, and a maximum height of 0.70mm.

LED Indication - Discrete Feature Summary

• Surface mount configuration for automated assembly
• Clear rectangular lens design
• Standard single-color red emission

LED Indication - Discrete Applications

• Panel indicators
• Discrete signal indication
• General purpose status lighting

LED Indication - Discrete Procurement Notes

Verify current availability as this specific part number is marked as obsolete and no longer manufactured. Confirm if the parameter-equivalent replacement 5988220107F meets all design requirements before procurement. Check datasheets for any changes in mechanical or electrical specifications between the original and substitute parts.

LED Indication - Discrete Selection Notes

Select the parameter-equivalent 5988220107F as a direct replacement due to the obsolescence of 5988220102F. Ensure compatibility with existing PCB footprints and circuit parameters. Review updated product documentation to confirm that performance characteristics remain consistent with the original design intent.

LED Indication - Discrete Part Context

The 598 series represents Dialight's line of surface-mount LEDs designed for compact electronic applications. This specific component belongs to the red LED subset within that family, characterized by standard packaging and reliable optical output for industrial and commercial signaling uses.

LED Indication - Discrete Replacement Considerations

The confirmed parameter-equivalent replacement is 5988220107F. Verify mechanical fit and electrical specs against the original design requirements.
