Overview

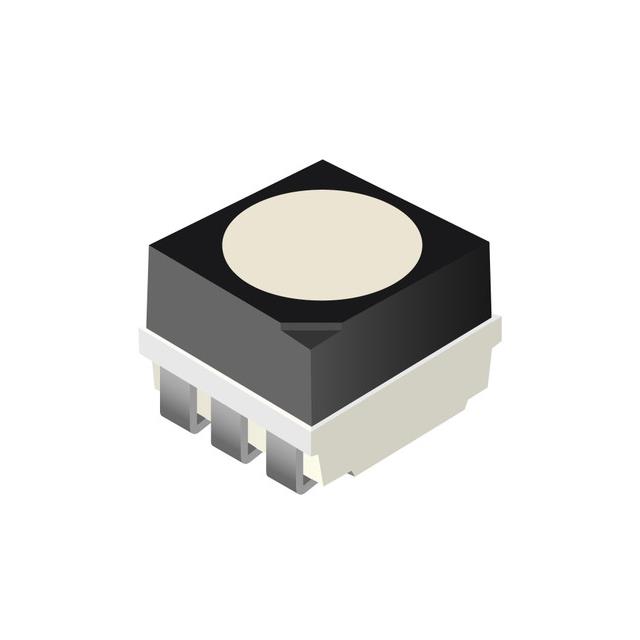

The Dialight 5988F10313F is a tri-color surface-mount LED in a 0603 (1608 metric) package. It emits red (635nm), green, and blue light with typical forward voltages of 2.4V, 3.6V, and 3.6V respectively. The device operates at a 20mA forward current with viewing angles of 110° to 120°. It features a round lens with a flat top, colorless appearance, and RoHS3 compliance.

Feature Summary

• Tri-color output capability for versatile indicator applications
• High viewing angle design for broad visibility
• Surface mount construction for automated assembly

Applications

• Electronic equipment status indicators
• Medical device signaling
• Consumer electronics displays

Procurement Notes

Verify the specific datasheet version for the 5988F10313F to confirm electrical parameters, as some sources list different voltage values. Ensure compatibility with standard reflow soldering profiles for 0603 packages. Check moisture sensitivity level requirements during storage and handling.

Selection Notes

Select this component when a compact tri-color solution is required in a 0603 footprint. Consider the specific forward voltage requirements for each color channel relative to the driving circuit. Verify that the 110°-120° viewing angle meets the optical visibility needs of the target application.

Part Context

This part belongs to the Dialight 598 series of MicroLEDs. These components are designed for high-reliability indication tasks where space constraints necessitate small form factors like 0603 or 1204 packages while maintaining distinct color output capabilities.

Replacement Considerations

Cross-reference with other 0603 tri-color LEDs from manufacturers such as Kingbright or Everlight. Ensure identical pinout configuration and similar forward voltage characteristics to maintain circuit compatibility without redesign.
