5990230007F

$0.26

Description：LED ORANGE 1206 SMD
Series：599
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:bcfaa302a689 Category: LED Indication - Discrete Brand: Dialight

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

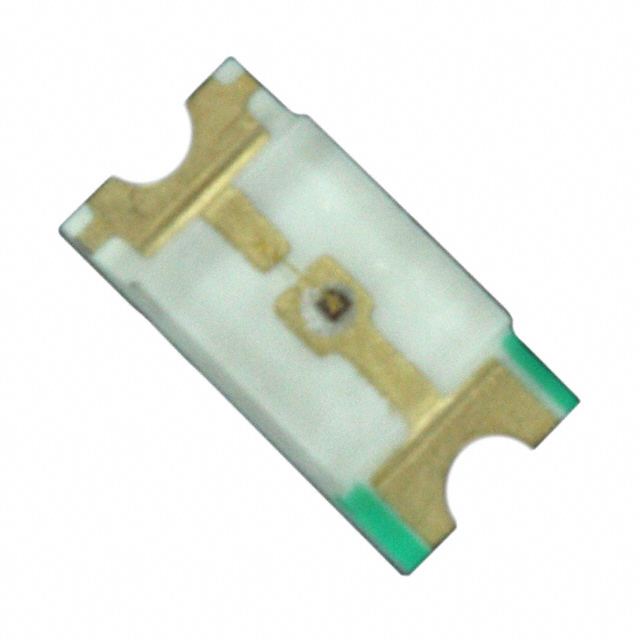

5990230007F is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Dialight. Its product description is LED ORANGE 1206 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 5990230007F

Description：LED ORANGE 1206 SMD
Series：599
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Orange
Configuration：Standard
Lens Color：-
Lens Transparency：-
Millicandela Rating：112mcd
Lens Style：Rectangle with Flat Top
Lens Size：2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：140°
Mounting Type：Surface Mount
Wavelength - Dominant：605nm
Wavelength - Peak：-
Features：-
Package / Case：1206 (3216 Metric)
Supplier Device Package：1206
Size / Dimension：3.20mm L x 1.60mm W
Height (Max)：0.80mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 5990230007F

5990230007F

LED Indication - Discrete Overview

The Dialight 5990230007F is a discrete surface-mount LED indicator belonging to the 599 series. It emits orange light with a dominant wavelength of 605 nm and a typical forward voltage of 2.1 V. The component utilizes a 1206 (3216 metric) package, measuring 3.20 mm in length and 1.60 mm in width, with a maximum height of 0.80 mm. It features a rectangular lens with a flat top design and provides a viewing angle of 140 degrees. The unit operates at a test current of 20 mA, delivering an optical intensity of 90 mcd.

LED Indication - Discrete Feature Summary

Orange emission with 140-degree viewing angle
Standard 1206 surface mount footprint
Rectangular flat-top lens configuration

LED Indication - Discrete Applications

Electronic equipment status indication
Control panel signaling
Instrumentation front panels

LED Indication - Discrete Procurement Notes

Verify the specific suffix against the manufacturer's official documentation to confirm exact binning and packaging specifications. Ensure that the selected variant matches the required moisture sensitivity level and reflow soldering profile for your assembly process. Cross-reference the datasheet for any recent product change notices or environmental compliance updates prior to finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a standard 1206 footprint is required for orange visual signaling. The 140-degree viewing angle offers broad visibility compared to narrower beam variants. Consider the 2.1 V forward voltage drop for circuit design calculations. This part is suitable for general-purpose industrial and commercial applications where standard surface mount reliability is needed.

LED Indication - Discrete Part Context

This device is part of the Dialight 599 series, which focuses on surface-mount LED indicators. The series provides various colors and package sizes for board-level illumination needs. The 5990230007F specifically addresses the demand for orange indicators in compact electronic designs requiring reliable surface-mount technology integration.
