Description：599 SMD LED 0805 BI-COLOR RED/GR
Series：599
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:64e7968b0b6b Category: LED Indication - Discrete Brand: Dialight

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

5991T10247F is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Dialight. Its product description is 599 SMD LED 0805 BI-COLOR RED/GR. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 5991T10247F

Description：599 SMD LED 0805 BI-COLOR RED/GR
Series：599
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green, Red
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Diffused
Millicandela Rating：236.25mcd Green, 112.5mcd Red
Lens Style：Rectangle with Flat Top
Lens Size：1.40mm x 1.30mm
Voltage - Forward (Vf) (Typ)：3.3V Green, 2V Red
Current - Test：20mA Green, 20mA Red
Viewing Angle：120°, 125° Green, 120°, 118° Red
Mounting Type：Surface Mount
Wavelength - Dominant：528nm Green, 630nm Red
Wavelength - Peak：-
Features：-
Package / Case：0805 (2012 Metric)
Supplier Device Package：805
Size / Dimension：2.00mm L x 1.30mm W
Height (Max)：0.50mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 5991T10247F

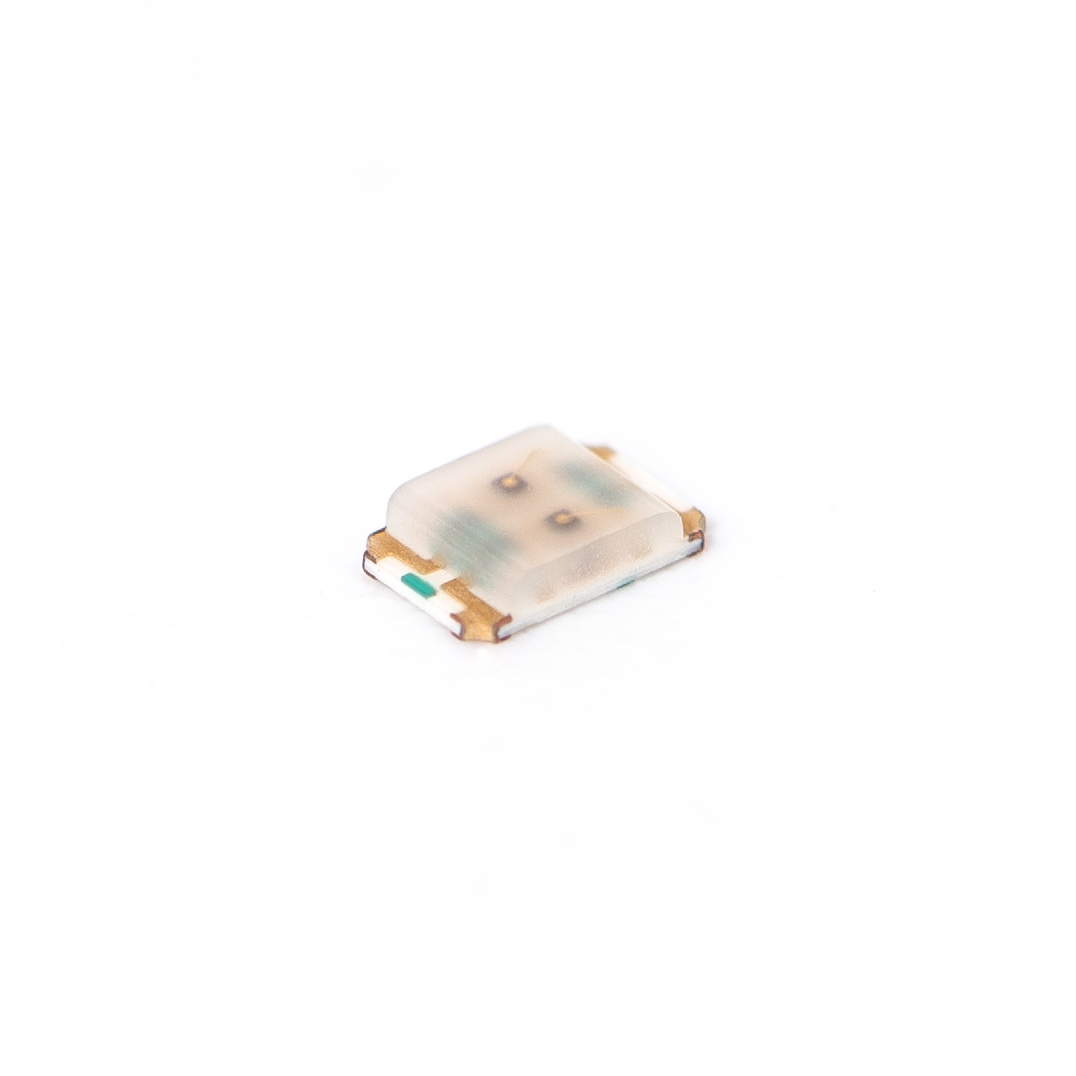

5991T10247F

LED Indication - Discrete Overview

The Dialight 5991T10247F is a surface-mount bi-color LED indicator in an 0805 (2012 Metric) package. It integrates Red and Green LEDs with dominant wavelengths of 630nm and 528nm respectively. The device operates at a forward current of 20mA per color, with forward voltages of 2.4V for Red and 3.9V for Green. Luminous intensities are rated at 180mcd for Red and 360mcd for Green. Viewing angles range from 118° to 125°. It is designed for automotive applications.

LED Indication - Discrete Feature Summary

Bi-color configuration combining Red and Green emission within a single compact surface-mount footprint
Automotive qualification ensuring reliability for vehicle electronic systems
High luminous intensity output optimized for clear visual indication

LED Indication - Discrete Applications

Automotive instrument panel indicators
Vehicle status signaling modules
Dashboard warning lights

LED Indication - Discrete Procurement Notes

Verify the specific binning requirements for luminous intensity and wavelength dominance prior to ordering, as these parameters can vary within manufacturing tolerances. Confirm that the 0805 package dimensions align with the target PCB layout constraints. Ensure soldering profiles comply with the thermal sensitivity specifications provided in the official datasheet to prevent component damage during assembly.

LED Indication - Discrete Selection Notes

Select this component when a dual-color indication is required in a space-constrained automotive environment. The 0805 form factor offers a balance between visibility and board real estate efficiency compared to larger through-hole alternatives. Consider the specific viewing angle requirements, as the asymmetric distribution may impact visibility depending on the mounting orientation relative to the operator.

LED Indication - Discrete Part Context

This part belongs to the Dialight MicroLED 599 Series, which focuses on high-reliability surface-mount indicators. The series is characterized by its automotive-grade construction and diverse color options. The 5991T10247F specifically addresses the need for compact, multi-state signaling solutions in modern vehicle electronics where board space is limited.
