5BC-3

$0.76

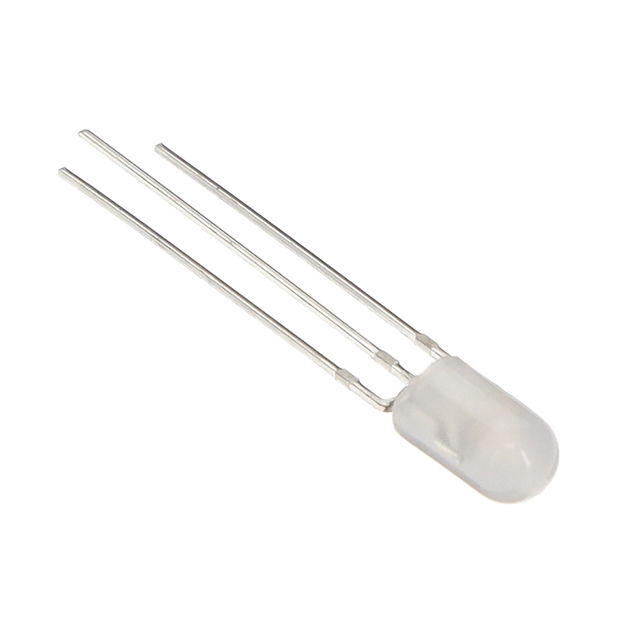

Description：LED GRN/RED DIFFUSED T-1 3/4 T/H
Series：-
Mfr：Bivar Inc.
Package：Bulk

SKU:e8a58362f5f5 Category: LED Indication - Discrete Brand: Bivar Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

5BC-3 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Bivar Inc.. Its product description is LED GRN/RED DIFFUSED T-1 3/4 T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 5BC-3

Description：LED GRN/RED DIFFUSED T-1 3/4 T/H
Series：-
Mfr：Bivar Inc.
Package：Bulk
Color：Green, Red
Configuration：Common Cathode
Lens Color：White
Lens Transparency：Diffused
Millicandela Rating：35mcd Green, 35mcd Red
Lens Style：Round with Domed Top
Lens Size：5mm, T-1 3/4
Voltage - Forward (Vf) (Typ)：2.1V Green, 2V Red
Current - Test：20mA Green, 20mA Red
Viewing Angle：40°
Mounting Type：Through Hole
Wavelength - Dominant：-
Wavelength - Peak：568nm Green, 625nm Red
Features：-
Package / Case：Radial - 3 Leads
Supplier Device Package：T-1 3/4
Size / Dimension：-
Height (Max)：8.60mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 5BC-3

5BC-3

LED Indication - Discrete Overview

The Bivar Inc. 5BC-3 is a bi-color LED panel mount indicator featuring red and green light emission with a white diffused lens. It utilizes a standard metal panel mount design with two leads for connection. The component operates within a temperature range of -25°C to +85°C and meets RoHS compliance standards.

LED Indication - Discrete Feature Summary

Bi-color red and green LED configuration
White diffused lens for uniform illumination
Standard metal panel mount construction
Two-leaded termination style

LED Indication - Discrete Applications

Equipment status indication
Power supply monitoring
Control panel signaling

LED Indication - Discrete Procurement Notes

Verify the manufacturer part number against official Bivar documentation to ensure authenticity. Confirm that the specific variant matches the required lead length and mounting hole diameter for your application. Check for any recent product change notices regarding material composition or manufacturing site transfers.

LED Indication - Discrete Selection Notes

Select this component when a dual-color visual signal is required in a standard metal enclosure. Ensure the panel cutout dimension aligns with the specified mounting requirements. Consider the forward voltage and current ratings during circuit design to guarantee proper operation without external drivers.

LED Indication - Discrete Part Context

This indicator belongs to Bivar's line of standard metal panel mount indicators, designed for reliable visual feedback in industrial and commercial applications. It serves as a direct replacement for legacy incandescent bulbs in equipment requiring distinct red and green status signals.
