5BC-F

$0.76

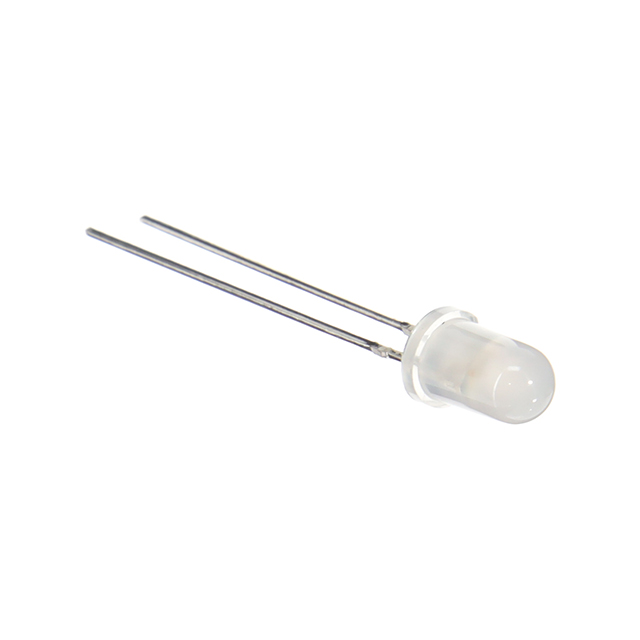

Description：LED GRN/RED DIFFUSED T-1 3/4 T/H
Series：-
Mfr：Bivar Inc.
Package：Bulk

SKU:c7fe6b4f5e8e Category: LED Indication - Discrete Brand: Bivar Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

5BC-F is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Bivar Inc.. Its product description is LED GRN/RED DIFFUSED T-1 3/4 T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 5BC-F

Description：LED GRN/RED DIFFUSED T-1 3/4 T/H
Series：-
Mfr：Bivar Inc.
Package：Bulk
Color：Green, Red
Configuration：Bidirectional
Lens Color：White
Lens Transparency：Diffused
Millicandela Rating：14mcd Green, 8mcd Red
Lens Style：Round with Domed Top
Lens Size：5mm, T-1 3/4
Voltage - Forward (Vf) (Typ)：2.2V Green, 2V Red
Current - Test：20mA Green, 20mA Red
Viewing Angle：140°
Mounting Type：Through Hole
Wavelength - Dominant：570nm Green, 620nm Red
Wavelength - Peak：565nm Green, 625nm Red
Features：-
Package / Case：Radial
Supplier Device Package：T-1 3/4
Size / Dimension：-
Height (Max)：8.60mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 5BC-F

5BC-F

LED Indication - Discrete Overview

The Bivar Inc. 5BC-F is a through-hole bi-color LED indicator featuring a 5mm T-1 3/4 radial package with three leads. It utilizes a diffused lens to emit red and green light, with peak wavelengths of 625nm and 568nm respectively. The component operates at a typical forward voltage of 2V for red and 2.1V for green, with a test current of 20mA. It offers a viewing angle of 140 degrees and luminous intensities of 8mcd for green and 35mcd for red.

LED Indication - Discrete Feature Summary

Bi-color configuration allowing independent red and green illumination within a single 5mm package
High viewing angle of 140 degrees facilitated by a diffused lens design
Radial three-lead construction suitable for standard through-hole mounting techniques

LED Indication - Discrete Applications

Panel mount status indicators
Equipment power state signaling
Multi-condition diagnostic displays

LED Indication - Discrete Procurement Notes

Verify the specific suffix requirements for your assembly, as variants like 5BC-3-F exist. Confirm RoHS compliance status against current regulatory standards before finalizing procurement. Check manufacturer lifecycle notifications, as this component may be marked as Not Recommended for New Designs (NRND). Ensure lead length and spacing match your PCB footprint specifications.

LED Indication - Discrete Selection Notes

Select this component when dual-state indication is required in a compact 5mm form factor. The high viewing angle makes it suitable for applications where visibility from wide angles is critical. Compare luminous intensity requirements against the 8mcd green and 35mcd red outputs. Consider the radial lead configuration for ease of manual or automated insertion into panel-mounted assemblies.

LED Indication - Discrete Part Context

This part belongs to Bivar's standard through-hole LED indicator series. It shares the 5mm T-1 3/4 physical dimensions with other discrete LEDs in the lineup but distinguishes itself through its bi-color capability. The product line focuses on reliable visual signaling for industrial and commercial equipment panels.
