5SRD

$0.32

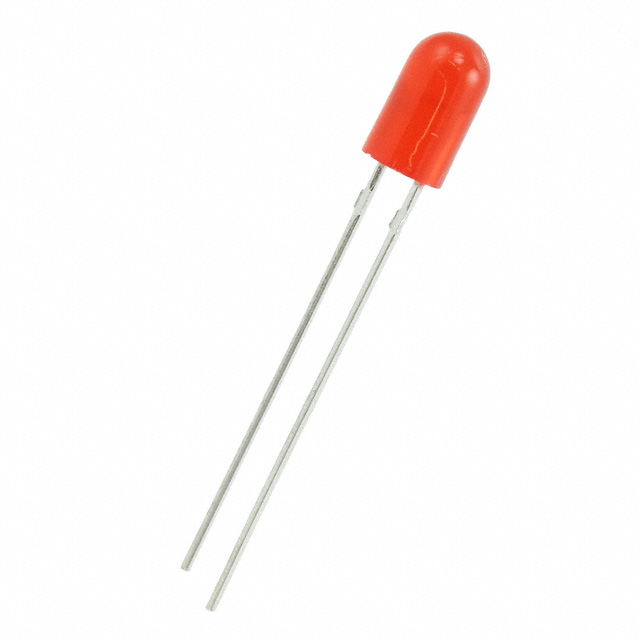

Description：LED RED DIFFUSED T-1 3/4 T/H
Series：-
Mfr：Bivar Inc.
Package：Bulk

SKU:094ee78abcb3 Category: LED Indication - Discrete Brand: Bivar Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

5SRD is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Bivar Inc.. Its product description is LED RED DIFFUSED T-1 3/4 T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 5SRD

Description：LED RED DIFFUSED T-1 3/4 T/H
Series：-
Mfr：Bivar Inc.
Package：Bulk
Color：Red
Configuration：Standard
Lens Color：Red
Lens Transparency：Diffused
Millicandela Rating：40mcd
Lens Style：Round with Domed Top
Lens Size：5mm, T-1 3/4
Voltage - Forward (Vf) (Typ)：1.7V
Current - Test：20mA
Viewing Angle：45°
Mounting Type：Through Hole
Wavelength - Dominant：-
Wavelength - Peak：645nm
Features：-
Package / Case：Radial
Supplier Device Package：T-1 3/4
Size / Dimension：-
Height (Max)：8.50mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 5SRD

5SRD

LED Indication - Discrete Overview

The Bivar Inc. 5SRD is a single-color red LED circuit board indicator designed for through-hole mounting. It features a 5 mm (T-1 3/4) lens with a diffused dome shape, emitting light at a peak wavelength of 645 nm. The component operates with a forward current of 20 mA and a forward voltage of 1.7 V, delivering an optical intensity of 40 mcd. Rated for 70 mW power dissipation, this vertical assembly provides a 40-degree viewing angle for clear status indication on printed circuit boards.

LED Indication - Discrete Feature Summary

Vertical T-1 3/4 (5 mm) form factor with diffused dome lens
Single-color red emission optimized for visibility
Through-hole mounting configuration for secure PCB attachment

LED Indication - Discrete Applications

Electronic equipment status indication
Power supply unit signaling
Control panel visual feedback

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm RoHS compliance details and exact spectral characteristics. Ensure the procurement channel sources from authorized distributors to guarantee component authenticity. Cross-reference the manufacturer part number against official catalogs to avoid confusion with similar discrete LED variants or obsolete stock.

LED Indication - Discrete Selection Notes

Select this component when a vertical, through-hole red indicator is required for standard 5 mm LED footprints. Consider the 40-degree viewing angle and diffused lens properties for applications needing broad visibility without glare. Verify that the 20 mA forward current rating aligns with the target circuit design constraints.

LED Indication - Discrete Part Context

This component belongs to the Bivar Inc. LED circuit board indicator category, specifically utilizing the T-1 3/4 (5 mm) package style. It serves as a discrete visual signal source within electronic assemblies, distinct from multi-element arrays or surface-mount alternatives.
