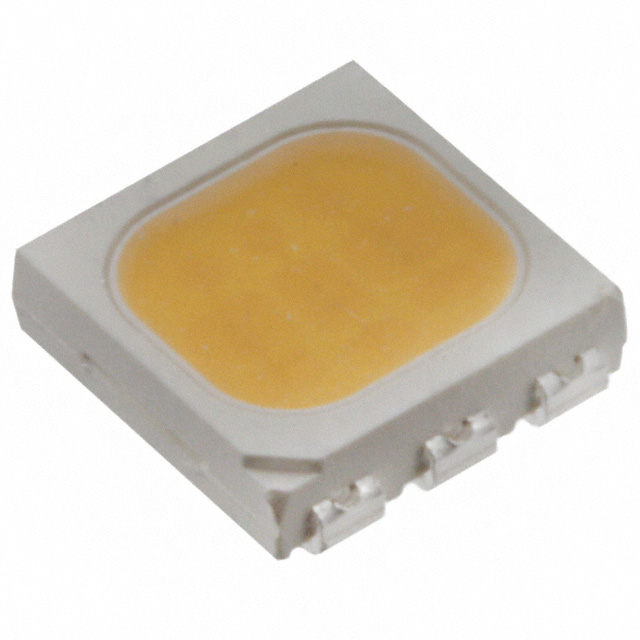

61-238/LK2C-B50638F6GB2/ET
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED COOL WHITE DIFF 6PLCC SMD
- Series：-
- Mfr：Everlight Electronics Co Ltd
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：White, Cool
- Configuration：Standard
- Lens Color：Yellow
- Lens Transparency：Diffused
- Millicandela Rating：6100mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：4.36mm x 3.96mm
- Voltage - Forward (Vf) (Typ)：3.25V
- Current - Test：3 x 20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：5000K ~ 6300K
- Wavelength - Peak：-
- Features：-
- Package / Case：6-SMD, J-Lead
- Supplier Device Package：6-PLCC
- Size / Dimension：5.00mm L x 5.00mm W
- Height (Max)：1.50mm
- Grade：-
- Qualification：-
Download product information
Overview
The Everlight 61-238/LK2C-B50638F6GB2/ET is a cool white surface-mount LED in a 6-PLCC package. It emits light with a correlated color temperature range of 5650K to 7000K and features a diffused yellow lens for wide-angle visibility. The device has a typical forward voltage of 3.25V and a viewing angle of 120 degrees. It operates within a temperature range of -40°C to +85°C, supports infrared reflow soldering, and complies with RoHS3 standards.
Feature Summary
- Utilizes a super-luminosity chip combined with special phosphors to generate cool white light.
- Features a lead frame package with individual six pins designed for surface mount technology.
- Incorporates a diffused lens structure to provide a wide viewing angle suitable for light guide applications.
Applications
- General lighting systems
- Decorative and entertainment lighting
- Light guide illumination
Procurement Notes
Verify the specific suffix code against official Everlight documentation to confirm exact luminous intensity and binning specifications. Ensure compatibility with infrared reflow soldering profiles during assembly. Confirm RoHS3 compliance status for regulatory adherence. Check moisture sensitivity level ratings for proper storage and handling requirements prior to mounting.
Selection Notes
Select this component for applications requiring high-intensity cool white illumination with a wide dispersion pattern. The 6-PLCC package facilitates automated surface mount assembly processes. Consider the thermal operating limits when designing heat dissipation strategies. Evaluate the forward voltage characteristics against the driving circuit requirements to ensure stable operation.
Part Context
This part belongs to the 61-238 series of single-color white LEDs manufactured by Everlight Electronics. The series utilizes SMT packages with lead frames featuring individual pins. These devices are engineered for general lighting and decorative applications, offering materialized white light through blue LED and phosphor combination technologies.
Replacement Considerations
Consult official Everlight documentation for confirmed substitute part numbers within the same series or package type. Verify electrical and mechanical compatibility before substituting components. Generic cross-references should be validated against manufacturer datasheets to ensure performance equivalence.
