Product Detailed Parameters

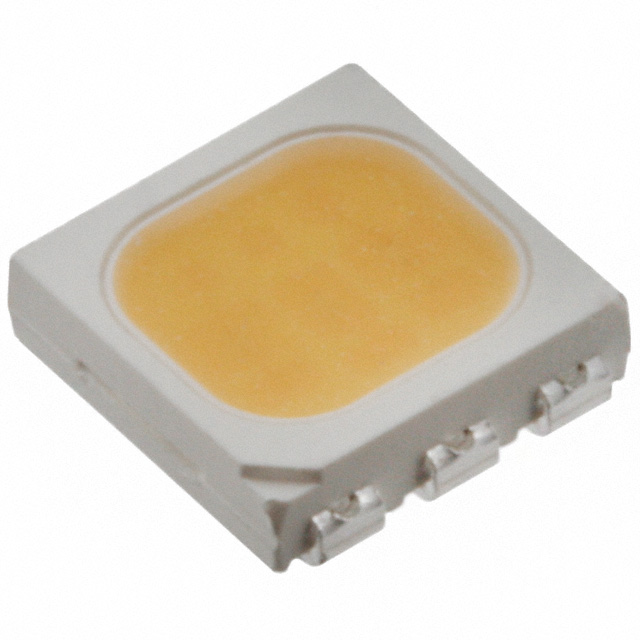

- Description：LED COOL WHITE DIFF 6PLCC SMD
- Series：-
- Mfr：Everlight Electronics Co Ltd
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：White, Cool
- Configuration：Standard
- Lens Color：Yellow
- Lens Transparency：Diffused
- Millicandela Rating：5500mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：4.36mm x 3.96mm
- Voltage - Forward (Vf) (Typ)：3.25V
- Current - Test：3 x 20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：4500K ~ 5650K
- Wavelength - Peak：-
- Features：-
- Package / Case：6-SMD, J-Lead
- Supplier Device Package：6-PLCC
- Size / Dimension：5.00mm L x 5.00mm W
- Height (Max)：1.50mm
- Grade：-
- Qualification：-
Download product information
Overview
The 61-238/QK2C-B45562FAGB2/ET is a single-color surface-mount LED manufactured by Everlight Electronics. It emits cool white light with a correlated color temperature range of 4500K to 5650K. The device utilizes a T-1, 3mm water-clear lens configuration and features a six-pin SMT package with a total height of 1.5 mm. It supports infrared reflow soldering methods and complies with RoHS standards. The nominal luminous intensity is specified at 4500 to 5650 mcd, with a maximum forward current of 0.03 A. Operating temperatures range from -40 °C to 85 °C.
Feature Summary
- Super-luminosity chip technology for enhanced brightness output
- Wide viewing angle design suitable for light guide applications
- Lead frame package with individual six pins for stable mounting
- Combines blue LEDs with special phosphors to realize white light
Applications
- General lighting systems
- Decorative lighting installations
- Entertainment lighting equipment
Procurement Notes
Verify the specific suffix codes against official Everlight documentation to ensure accurate color temperature and luminous intensity specifications. Confirm that the procurement channel provides genuine components compliant with RoHS directives. Check datasheet revisions for any updates on soldering profiles or thermal management requirements before integration into final assemblies.
Selection Notes
Select this component when wide viewing angles and high luminosity are required for white light applications. The surface-mount format facilitates automated assembly processes. Ensure the driving circuit accommodates the 0.03 A maximum forward current limit. Consider the 1.5 mm profile height for spatial constraints in compact electronic designs requiring cool white illumination.
Part Context
This part belongs to the 61-236 series of white SMT LEDs from Everlight Electronics. The series is characterized by lead-free construction and support for infrared reflow soldering. These devices are engineered for low power consumption while maintaining high brightness levels through advanced phosphor conversion techniques applied to blue LED chips.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Cross-referencing requires direct consultation of manufacturer compatibility lists or equivalent electrical parameter matching from other suppliers.
