641210-3

Headers, Male Pins Overview

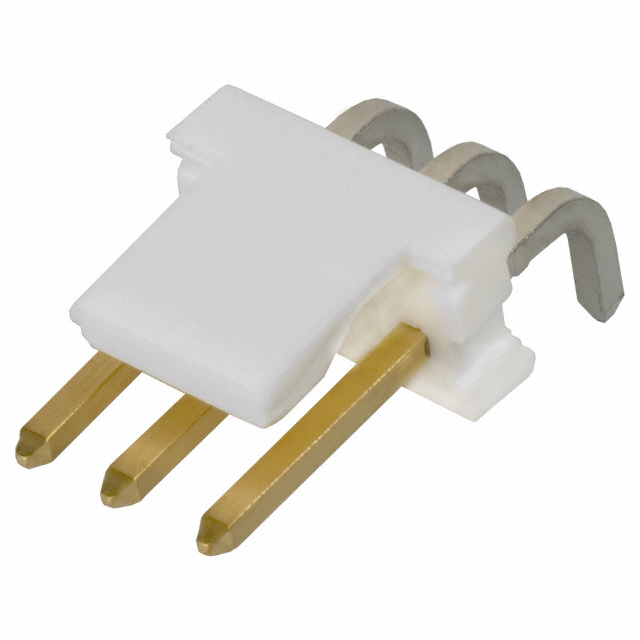

The TE Connectivity AMP Connectors part number 641210-3 is a rectangular header assembly belonging to the MTA-100 series. It features three positions with a 2.54 mm (0.1 inch) pitch, designed for right-angle mounting on printed circuit boards. The connector utilizes gold-plated contacts made from copper alloy and polyester housing material rated UL 94 V-0. It supports wire-to-board applications with a current rating of 5 A and voltage rating of 250 V.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting configuration for efficient PCB layout
• Gold-plated contacts ensure reliable signal transmission in wire-to-board connections
• Polyester housing provides structural integrity and flame resistance

Headers, Male Pins Applications

• Wire-to-board interconnections
• General electronic equipment signal routing
• Industrial control system interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix and orientation against design requirements. Confirm that the right-angle form factor matches the board space constraints. Ensure compatibility with mating pins regarding contact plating and mechanical retention. Cross-reference the MTA-100 series specifications for environmental ratings.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for three-wire circuits. The 2.54 mm pitch allows standard spacing compatibility. Consider the 5 A current capacity for power distribution or high-current signal lines within the specified voltage limits. Verify housing color availability if visual identification is necessary.

Headers, Male Pins Part Context

This header is part of the Mass Termination Assembly (MTA) system by TE Connectivity. The MTA series is widely used for its robust insulation displacement and solder termination capabilities. The 641210-3 specifically addresses needs for compact, right-angle connectivity in dense electronic assemblies.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other MTA-100 series headers with identical pin counts and right-angle configurations. Ensure mating parts match the 2.54 mm pitch and gold contact specifications. Verify housing material and flammability ratings for equivalent performance.
