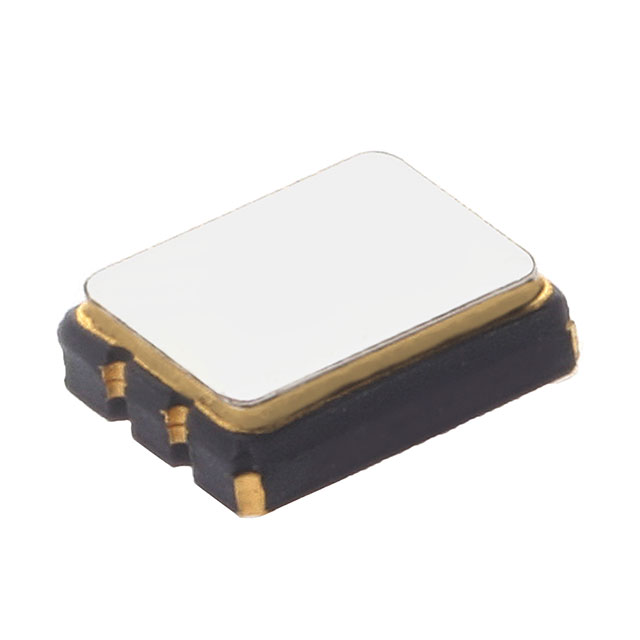

643H10004I3R

$2.37

Description：XTAL OSC XO 100.0000MHZ HCSL SMD
Series：643H
Mfr：CTS-Frequency Controls
Package：Tape & Reel (TR)

SKU:4d84534c8bfe Category: Oscillators Brand: CTS-Frequency Controls

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

643H10004I3R is listed in the Oscillators range at ChipApex. The manufacturer field lists CTS-Frequency Controls. Its product description is XTAL OSC XO 100.0000MHZ HCSL SMD. Review the specifications below when checking this part for your BOM.

Oscillators specifications for 643H10004I3R

Description：XTAL OSC XO 100.0000MHZ HCSL SMD
Series：643H
Mfr：CTS-Frequency Controls
Package：Tape & Reel (TR)
Base Resonator：Crystal
Type：XO (Standard)
Frequency：100 MHz
Function：Enable/Disable
Output：HCSL
Voltage - Supply：3.3V
Frequency Stability：±30ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：60mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：6-SMD, No Lead
Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)：0.039" (1.00mm)

Oscillators datasheet and documents for 643H10004I3R

643H10004I3R

Oscillators Overview

The CTS-Frequency Controls 643H10004I3R is a crystal oscillator (XO) operating at 100 MHz with HCSL output. It functions on a 3.3V supply and features enable/disable control. The device utilizes a 6-SMD, no-lead package measuring 3.20mm x 2.50mm with a maximum height of 1.00mm. It supports surface mount installation and operates within a temperature range of -20°C to 70°C.
