65-21/T2C-FV1W2E/2T

LED Indication - Discrete Overview

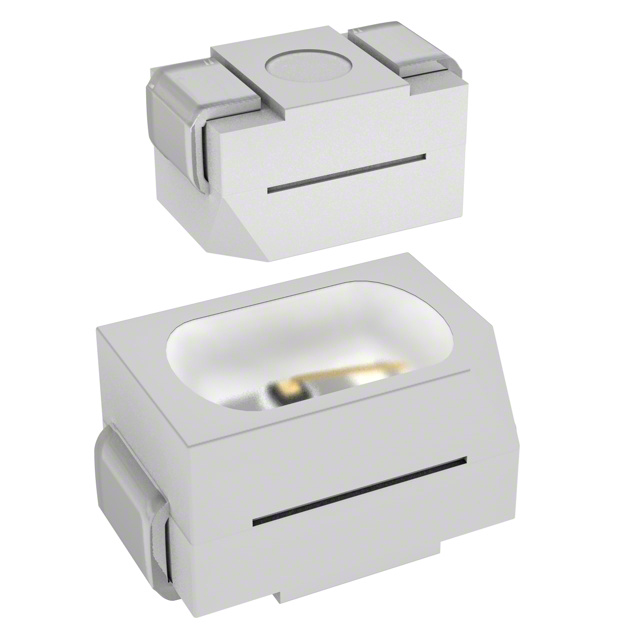

The 65-21/T2C-FV1W2E/2T is a single-color LED manufactured by Everlight Electronics Co., Ltd. It utilizes a Mini Top View package design with a surface mount (SMD/SMT) installation style. The component features a J-Lead configuration and is housed in a 2-SMD package. Official documentation classifies this part as an economical and reliable standard LED designed for low current operation.

LED Indication - Discrete Feature Summary

• Mini Top View optical structure
• Surface Mount Device (SMD) form factor
• J-Lead terminal configuration

LED Indication - Discrete Applications

• Low current indicator applications
• Standard electronic device signaling

LED Indication - Discrete Procurement Notes

Verify the specific datasheet revision, as multiple variants exist including EU-specific versions. Confirm the exact lead type matches the required PCB footprint. Check regional availability restrictions as some distributors report limited supply status. Ensure the ordering suffix aligns with the desired lens and packaging specifications.

LED Indication - Discrete Selection Notes

Select this component when a Mini Top View profile is required for space-constrained designs. The J-Lead package offers specific mechanical retention characteristics distinct from gull-wing or flat leads. Consider the low-current operational rating for power efficiency requirements. Validate compatibility with automated pick-and-place equipment due to the SMD format.

LED Indication - Discrete Part Context

This part belongs to the Everlight Mini Top LEDs series. It shares the general family designation with other variants such as the 65-21/T2C-FV1W2E/2AA, which features a reverse gull wing package. The specific model number distinguishes the lead shape and lens configuration within the broader product line.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Cross-reference with the official Everlight replacement guide for verified alternatives.
