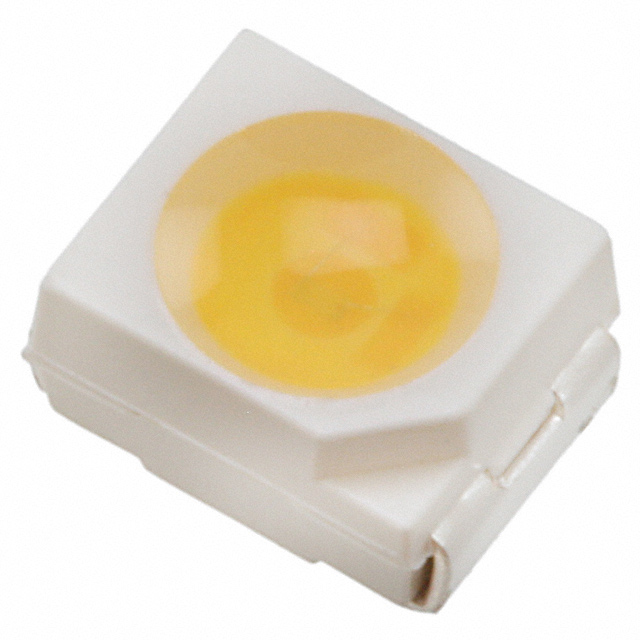

67-21/KK2C-S40402C4CB2/2T

$0.59

Description：LED WHITE/NEUTRAL DIFF 2PLCC SMD
Series：-
Mfr：Everlight Electronics Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:50c0aa1584af Category: LED Indication - Discrete Brand: Everlight Electronics Co Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

67-21/KK2C-S40402C4CB2/2T is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Everlight Electronics Co Ltd. Its product description is LED WHITE/NEUTRAL DIFF 2PLCC SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 67-21/KK2C-S40402C4CB2/2T

Description：LED WHITE/NEUTRAL DIFF 2PLCC SMD
Series：-
Mfr：Everlight Electronics Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White, Neutral
Configuration：Standard
Lens Color：Yellow
Lens Transparency：Diffused
Millicandela Rating：2200mcd
Lens Style：Round with Flat Top
Lens Size：-
Voltage - Forward (Vf) (Typ)：3.25V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：4000K
Wavelength - Peak：-
Features：-
Package / Case：2-PLCC
Supplier Device Package：2-PLCC
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：2.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 67-21/KK2C-S40402C4CB2/2T

67-21/KK2C-S40402C4CB2/2T

LED Indication - Discrete Overview

The Everlight 67-21/KK2C-S40402C4CB2/2T is a warm white surface-mount LED in a 2-PLCC package. It emits at 3000K with a typical forward voltage of 3.25V at 20mA. The component features a diffused yellow lens and a 120° viewing angle. Dimensions are 3.60mm x 2.80mm x 2.10mm max. It has a millicandela rating of 2200mcd. The device is lead-free, RoHS compliant, and utilizes infrared reflow soldering methods.

LED Indication - Discrete Feature Summary

Warm white light emission utilizing blue LEDs combined with special phosphors
Wide 120-degree viewing angle for broad illumination coverage
Surface mount design suitable for automated assembly processes

LED Indication - Discrete Applications

General lighting fixtures
Decorative and entertainment lighting systems
Indicator applications requiring warm color temperature

LED Indication - Discrete Procurement Notes

This component is officially obsolete and no longer manufactured by Everlight Electronics. Procurement must focus on verified replacement parts rather than original stock. Verify that substitute components match the required electrical parameters and physical dimensions to ensure compatibility with existing circuit designs and manufacturing equipment.

LED Indication - Discrete Selection Notes

Designers should evaluate alternative white SMD packages from the manufacturer's current portfolio. Consider thermal management requirements and luminous intensity needs when selecting replacements. Ensure the chosen substitute maintains similar viewing angles and forward voltage characteristics to preserve optical performance and drive circuit stability in the final application.

LED Indication - Discrete Part Context

This part belongs to the 67-21 series of white SMT LEDs from Everlight. These devices are characterized by their PLCC-2 package format and use of specialized phosphor technology to achieve specific color temperatures. The series supports various lens configurations and brightness levels for diverse lighting applications.
