68001-100HLF

Headers, Male Pins Overview

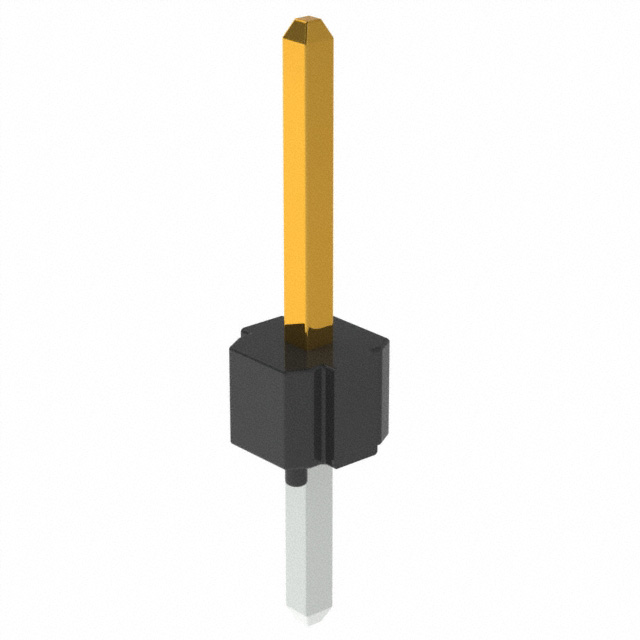

The Amphenol ICC (FCI) 68001-100HLF is a BergStik II series pin header connector designed for board-to-board applications. It features a 2.54 mm pitch and a single row configuration with 36,000 positions. The component utilizes phosphor bronze contacts with gold plating and operates within a temperature range of -65°C to +125°C. Rated at 3 A current and 1.5 kV voltage, it employs a straight through-hole solder termination style. The housing is constructed from black thermoplastic material compliant with UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• BergStik II modular mezzanine system architecture
• Gold-plated phosphor bronze contact interface
• High-density multi-row pin strip design

Headers, Male Pins Applications

• Board-to-board interconnection
• High-density signal routing
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific quantity per unit against the datasheet, as 36,000 positions indicates a specialized high-count assembly or bulk packaging format. Confirm RoHS compliance status and lead times directly with the manufacturer or authorized distributors. Ensure the ordering suffix matches the required contact length and termination specifications for your PCB layout.

Headers, Male Pins Selection Notes

Select this component when high-density interconnectivity is required on a standard 2.54 mm grid. The BergStik II system allows for flexible configuration of rows and positions. Verify that the PCB footprint accommodates the specific pin dimensions and that the mating connector aligns with the unshrouded header design. Consider thermal management requirements given the high position count.

Headers, Male Pins Part Context

This part belongs to the BergStik II family, a fully modular pin-in-socket system developed by Amphenol FCI. The series is characterized by its versatility in creating custom board-to-board solutions. The 68001 prefix identifies the specific unshrouded header variant within this broader ecosystem of interconnect products.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 2.54 mm pitch unshrouded headers from manufacturers such as Molex or Samtec. Ensure the replacement maintains the same current rating, voltage withstand capability, and mechanical retention strength. Verify that the mating socket counterpart matches the pin diameter and insulation height.

Headers, Male Pins FAQ

What is the maximum operating temperature?

The maximum operating temperature is +125°C.

Is the connector shrouded?

No, the 68001-100HLF is an unshrouded header.
