7010X11

LED Indication - Discrete Overview

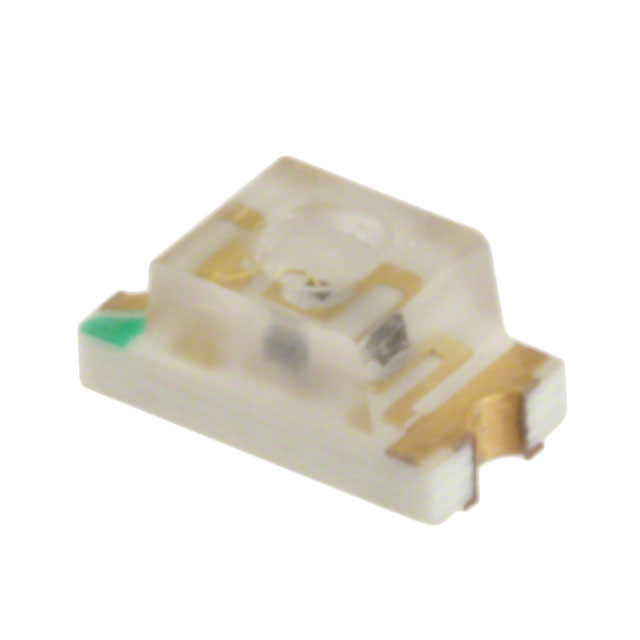

The 7010X11 is a red, water-clear surface-mount LED from Visual Communications Company. It utilizes a 1206 (3216 metric) package with dimensions of 3.00mm length and 1.50mm width. The component features a rectangular lens with a flat top and a peak wavelength of 650nm. Typical forward voltage is 2.1V at a test current of 20mA. It offers a viewing angle of 130 degrees and emits light with an intensity of 75mcd. The device is RoHS compliant and has a moisture sensitivity level of 1.

LED Indication - Discrete Feature Summary

• Provides high-intensity red indication through a water-clear lens design
• Offers a wide 130-degree viewing angle for broad visibility
• Utilizes a compact 1206 surface-mount footprint for space-constrained layouts

LED Indication - Discrete Applications

• General-purpose electronic status indication
• Interface lighting in consumer electronics
• Panel indicators for industrial control systems

LED Indication - Discrete Procurement Notes

Verify the exact datasheet version before integration, as manufacturer specifications may undergo revisions. Confirm that the 1206 package dimensions align with your PCB footprint requirements. Ensure that the 2.1V forward voltage drop is compatible with your driving circuit's power supply constraints. Check for any specific handling instructions related to the moisture sensitivity classification during assembly processes.

LED Indication - Discrete Selection Notes

Select this component when a standard red indicator is required in a small surface-mount form factor. The 130-degree viewing angle makes it suitable for applications requiring wide-angle visibility. Consider the 20mA test current requirement when designing current-limiting resistors. The water-clear lens ensures maximum brightness output compared to diffused alternatives.

LED Indication - Discrete Part Context

This part belongs to VCC's SpectraBright series of SMD LEDs, designed for standalone or array applications. The series emphasizes small footprints with high performance. The 7010X11 specifically targets general indication needs where standard red color and clear lens transparency are preferred for direct visual feedback in electronic assemblies.

LED Indication - Discrete Replacement Considerations

No official substitute part numbers are documented in the provided source material for this discontinued item. Users should evaluate generic 1206 red SMD LEDs from other manufacturers, ensuring matching electrical parameters such as forward voltage and peak wavelength for functional compatibility.

LED Indication - Discrete FAQ

What is the peak wavelength of the 7010X11 LED?

The peak wavelength is 650nm, which corresponds to a standard red color.

Is the 7010X11 RoHS compliant?

Yes, the component is RoHS compliant according to the manufacturer's environmental classification.
