7017X15

$0.18

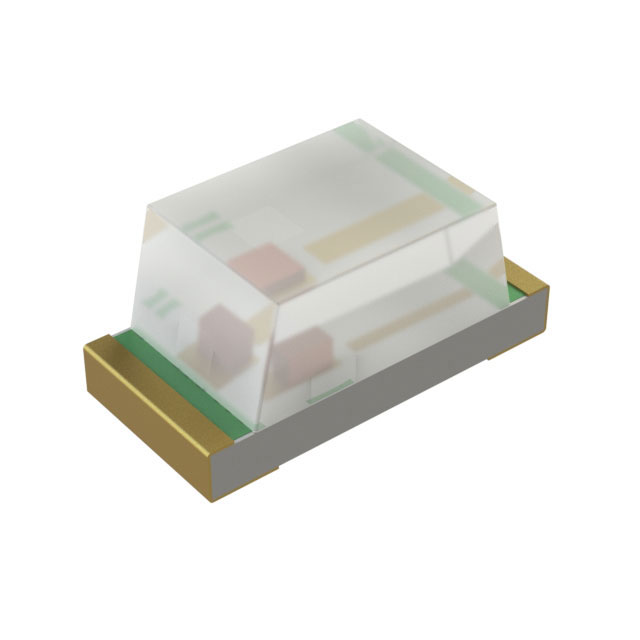

Description：LED GREEN DIFFUSED 0603 SMD
Series：7017X
Mfr：Visual Communications Company - VCC
Package：Tape & Reel (TR)

SKU:5b350e9d4e37 Category: LED Indication - Discrete Brand: Visual Communications Company - VCC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

7017X15 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Visual Communications Company - VCC. Its product description is LED GREEN DIFFUSED 0603 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 7017X15

Description：LED GREEN DIFFUSED 0603 SMD
Series：7017X
Mfr：Visual Communications Company - VCC
Package：Tape & Reel (TR)
Color：Green
Configuration：Standard
Lens Color：-
Lens Transparency：Diffused
Millicandela Rating：2.4mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.09mm x 0.79mm
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：70°
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：555nm
Features：-
Package / Case：0603 (1608 Metric)
Supplier Device Package：0603 (1608 Metric)
Size / Dimension：1.60mm L x 0.80mm W
Height (Max)：0.71mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 7017X15

7017X15

LED Indication - Discrete Overview

The VCC 7017X15 is a single-color green LED in a 0603 surface-mount package. It emits at a wavelength of 555 nm with a diffused, colorless rectangular lens measuring 1.2 mm x 0.8 mm. The component operates at a forward current of 20 mA and a forward voltage of 2.1 V, rated for 70 mW power. It provides an optical intensity of 2.4 mcd with a 70-degree viewing angle. Dimensions are 1.6 mm length, 0.8 mm width, and 0.7 mm height. Operating temperature ranges from -30°C to +85°C.

LED Indication - Discrete Feature Summary

Diffused green light emission optimized for visibility
Standard 0603 surface-mount footprint for compact integration
Rectangular lens design with wide viewing angle

LED Indication - Discrete Applications

Panel indicator lights
Status indication in consumer electronics
Appliance control interfaces

LED Indication - Discrete Procurement Notes

Verify RoHS compliance status through official manufacturer documentation prior to procurement. Confirm moisture sensitivity handling requirements during storage and assembly processes. Ensure supply chain sources provide valid traceability data matching the specific VCC manufacturing batch codes. Cross-reference datasheet revisions to confirm parameter consistency against current production standards.

LED Indication - Discrete Selection Notes

Select this component for applications requiring standard green visual feedback in space-constrained designs. The 0603 package facilitates automated surface-mount assembly. Consider the 70-degree viewing angle and diffused lens characteristics for broad visibility requirements. Verify that the 2.1 V forward voltage aligns with the target circuit drive capabilities.

LED Indication - Discrete Part Context

VCC manufactures HMI components including LEDs and panel indicators. The 7017X15 belongs to their single-color LED product line. This component supports general-purpose indication tasks. The manufacturer provides global distribution networks for availability.
