717-012-541-101

Edgeboard Connectors Overview

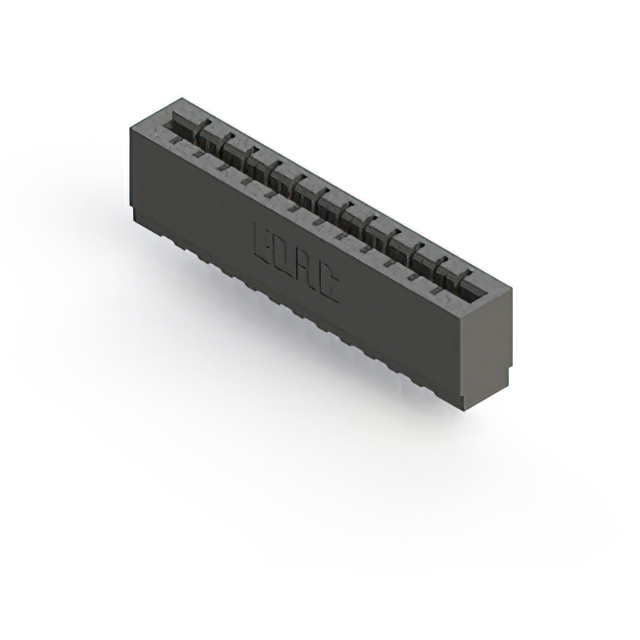

The EDAC Inc. 717-012-541-101 is a press-fit card edge connector from the 717 Series, designed for high-density applications. It features a single row of 12 female positions with a 0.156-inch (3.96 mm) pitch. The connector utilizes gold-plated contacts on a black insulator and is engineered for vertical panel mounting via press-fit termination. It supports a maximum operating temperature of +105°C.

Edgeboard Connectors Feature Summary

• Press-fit termination technology ensures secure board attachment without soldering.
• Gold-plated contacts provide reliable electrical performance in demanding environments.
• Vertical panel mount design facilitates efficient space utilization.

Edgeboard Connectors Applications

• High-density electronic systems requiring robust interconnects
• Industrial control panels needing durable connections
• Telecommunications equipment utilizing press-fit standards

Edgeboard Connectors Procurement Notes

Verify that the target printed circuit board is specifically designed to accommodate press-fit termination requirements. Confirm that the mechanical stack-up aligns with the connector's height specifications. Ensure the application environment remains within the stated thermal limits. Validate that the contact plating meets the necessary conductivity standards for the intended signal integrity.

Edgeboard Connectors Selection Notes

Select this component when a non-soldered connection method is required for high-reliability assemblies. Consider the 0.156-inch pitch if higher density than standard 0.100-inch options is needed. Evaluate the vertical orientation against available panel space constraints. Compare the 12-position count against alternative series variants to ensure optimal fit for the specific circuit layout requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 717 Series, which specializes in press-fit card edge connectors. The series offers various position counts and configurations tailored for industrial and telecommunications sectors. The 717-012-541-101 represents a specific configuration within this family, focusing on single-row, 12-position applications.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct cross-reference equivalents. Verify compatibility with existing PCB press-fit holes before substitution. Ensure that any alternative maintains the same pitch, row count, and termination style to preserve mechanical and electrical integrity.
