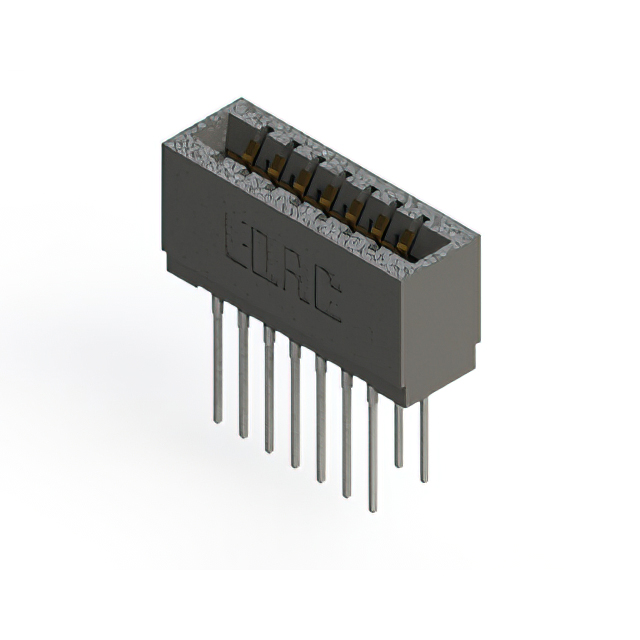

726-014-545-201

$3.65

Description：CONN EDGE DUAL FMALE 14POS 0.125
Series：726
Mfr：EDAC Inc.
Package：Bulk

SKU:456f7274fc5f Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

726-014-545-201 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.125. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 726-014-545-201

Description：CONN EDGE DUAL FMALE 14POS 0.125
Series：726
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：7
Number of Positions：14
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.125" (3.18mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Press-Fit, Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 726-014-545-201

726-014-545-201

Edgeboard Connectors Overview

The EDAC Inc. 726-014-545-201 is a dual-row card edge connector designed for vertical panel mount applications. It features 14 positions with a 0.125-inch (3.18 mm) pitch and utilizes wire wrap termination. The connector employs female contacts with gold plating on thermoplastic polyester insulators, rated for operation between -40°C and 105°C.

Edgeboard Connectors Feature Summary

Dual-row configuration supporting high-density signal routing
Wire wrap termination method for secure lead attachment
Gold-plated female contacts ensuring reliable conductivity

Edgeboard Connectors Applications

Vertical panel mounting in industrial control systems
Interfacing edge cards in telecommunications equipment
Signal connection in specialized electronic instrumentation

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized channels due to obsolete status. Confirm physical dimensions against current design requirements as the manufacturer recommends the 746 series as a replacement. Ensure compatibility with existing wire wrap tools and panel cutouts before procurement.

Edgeboard Connectors Selection Notes

Select this part for applications requiring a 0.125-inch pitch with wire wrap termination. Consider the recommended 746-014-545-201 substitute if long-term supply stability is required. Verify that the target PCB or edge card thickness aligns with standard specifications for this series.

Edgeboard Connectors Part Context

This component belongs to the EDAC 726 series of card edge connectors. It is specifically designed for vertical panel mount installations using wire wrap technology. The series provides robust interconnection solutions for dual-edge board applications in demanding environments.

Edgeboard Connectors Replacement Considerations

The manufacturer recommends the 746-014-545-201 as an equivalent alternative. This substitute maintains similar functional characteristics while addressing supply chain availability for discontinued components.
