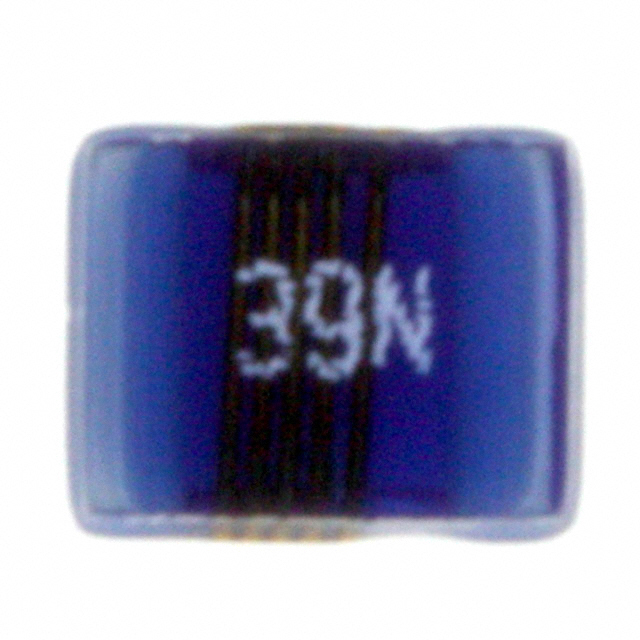

744762139A

$0.37

Description：FIXED IND 39NH 1A 100 MOHM SMD
Series：WE-KI
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:eccbe2822573 Category: Fixed Inductors Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

744762139A is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is FIXED IND 39NH 1A 100 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for 744762139A

Description：FIXED IND 39NH 1A 100 MOHM SMD
Series：WE-KI
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ceramic
Inductance：39 nH
Tolerance：±5%
Current Rating (Amps)：1:00 AM
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：100mOhm Max
Q @ Freq：60 @ 350MHz
Frequency - Self Resonant：1.5GHz
Ratings：AEC-Q200
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 MHz
Mounting Type：Surface Mount
Package / Case：1008 (2520 Metric)
Supplier Device Package：1008 (2520 Metric)
Size / Dimension：0.102" L x 0.083" W (2.60mm x 2.10mm)
Height - Seated (Max)：0.075" (1.90mm)
Features：-

Fixed Inductors datasheet and documents for 744762139A

744762139A

Fixed Inductors Overview

The Würth Elektronik 744762139A is an unshielded, wirewound RF inductor from the WE-KI series. It features a ceramic core and is housed in a 1008 (2520 metric) surface-mount package with standard terminals. The component provides an inductance of 39 nH with a tolerance of ±2%. It supports a maximum DC current of 1 A and has a maximum DC resistance of 100 mOhms. The self-resonant frequency is 1.5 GHz, with a minimum Q factor of 45 at 570 MHz. It operates within a temperature range of -40°C to +125°C.

Fixed Inductors Feature Summary

Utilizes a ceramic core for stable performance in RF applications
Unshielded wirewound construction suitable for high-frequency circuits
Automotive qualified under AEC-Q200 standards

Fixed Inductors Applications

RF circuit design
Automotive electronics systems
High-frequency signal processing

Fixed Inductors Procurement Notes

Verify that the specific part number matches the required electrical specifications, particularly the 39 nH inductance and 1 A current rating. Confirm compliance with RoHS directives and REACH regulations before integration. Ensure the 1008 package dimensions align with the PCB footprint requirements. Check for any recent product change notices or end-of-life announcements directly from the manufacturer's official documentation.

Fixed Inductors Selection Notes

Select this component when a low-inductance, high-current SMD inductor is needed for RF filtering or matching networks. The ceramic core offers advantages over ferrite cores in terms of thermal stability. The AEC-Q200 qualification makes it suitable for automotive environments. Consider the unshielded nature for layout sensitivity and the 1.5 GHz self-resonant frequency for bandwidth limitations.

Fixed Inductors Part Context

This component belongs to the WE-KI series of fixed inductors manufactured by Würth Elektronik. The series specializes in wirewound inductors with ceramic cores, designed for surface-mount applications. These components are engineered for reliability in demanding electronic environments, offering consistent performance across wide temperature ranges.
