745-006-545-106

Edgeboard Connectors Overview

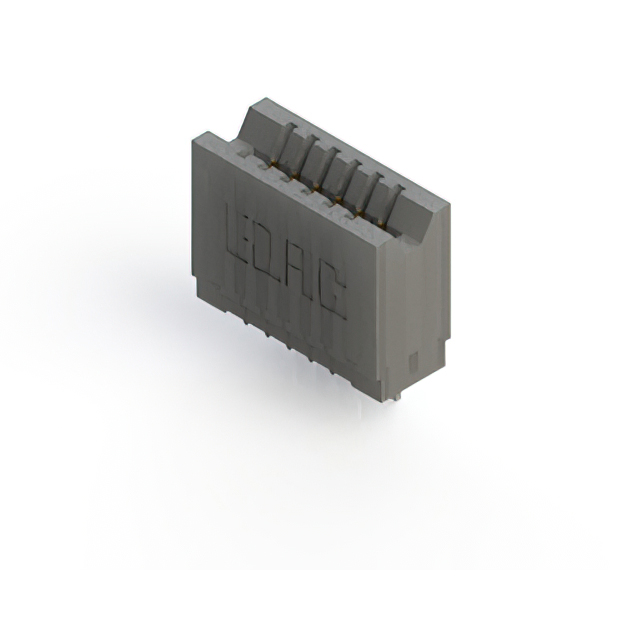

The EDAC Inc. 745-006-545-106 is a single-row female card edge connector designed for press-fit mounting onto printed circuit boards. It features six positions with a 0.100-inch (2.54mm) contact spacing and utilizes gold-plated contacts to ensure reliable signal transmission. The connector is constructed with a black thermoplastic polyester insulator and copper alloy terminals, supporting a board thickness of 1.57mm. Rated for operation between -40°C and +105°C, this component provides a robust interconnection solution for standard card edge applications requiring secure panel or vertical installation.

Edgeboard Connectors Feature Summary

• Press-fit termination method ensures secure mechanical attachment without soldering
• Gold-plated contacts provide corrosion resistance and stable electrical performance
• Single-edge female configuration accommodates non-specified card types

Edgeboard Connectors Applications

• Standard card edge interconnects in industrial control systems
• Panel-mounted electronic modules requiring press-fit stability
• Vertical insertion applications in telecommunications equipment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix matches the required contact spacing and termination style. Confirm that the press-fit tail dimensions align with the target PCB hole specifications. Ensure the thermal rating meets the operational environment requirements. Cross-reference the manufacturer's latest datasheet for any design changes or compliance updates before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a low-profile, single-row connection is required for 0.100-inch pitch cards. The press-fit feature eliminates soldering processes, reducing assembly time and thermal stress on components. Verify compatibility with the specific card edge thickness and guide rail constraints of the host system to ensure proper mechanical fit and electrical continuity.

Edgeboard Connectors Part Context

This component belongs to the EDAC 745 Series, which specializes in press-fit card edge connectors. The series offers various position counts and termination options tailored for high-reliability applications. The 745-006 variant specifically addresses needs for compact, six-position interfaces where mechanical retention via press-fit tails is preferred over traditional soldering methods.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include other 745-series part numbers with matching 0.100-inch pitch and press-fit termination. Verify pin count and row configuration to ensure functional equivalence. Alternative models may require verification of tail length and insulator material compatibility.
