75168-113-04LF

Headers, Male Pins Overview

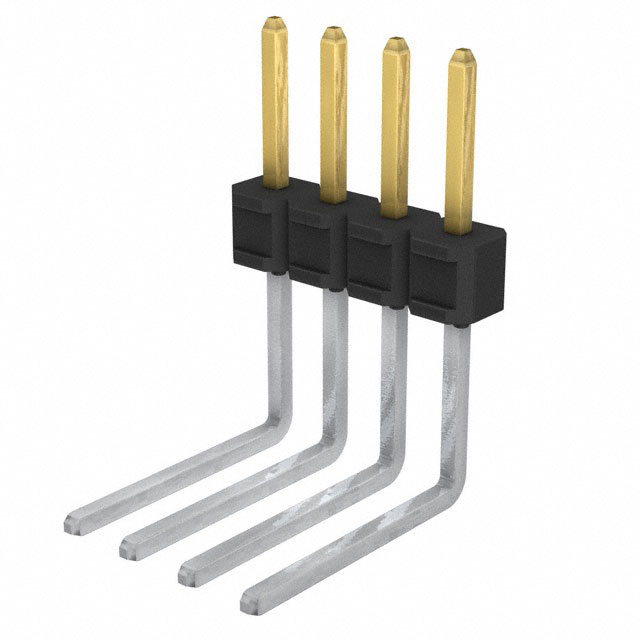

The 75168-113-04LF is a BergStik® unshrouded header manufactured by Amphenol ICC (FCI). It features 4 positions in a single row with a 2.54 mm pitch. The connector utilizes male pin contacts made of phosphor bronze, gold-plated for reliable performance. Designed for board-to-board applications, it supports through-hole mounting with a right-angle orientation. The housing is constructed from black thermoplastic material, rated UL94 V-0 for flammability. It operates within a temperature range of -65°C to +130°C and carries an electrical rating of 5 A at 110 V.

Headers, Male Pins Feature Summary

• Right-angle configuration facilitates compact vertical board stacking
• Gold plating ensures durable signal integrity
• Unshrouded design allows for flexible mating options

Headers, Male Pins Applications

• Board-to-board interconnection
• Data communication equipment
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix '04LF' confirms the four-position count and lead-free status. Confirm RoHS compliance requirements against project specifications. Check for end-of-life notices as this series may be subject to discontinuation. Ensure right-angle mounting compatibility with the target PCB layout before ordering.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for dense circuit layouts. The 2.54 mm pitch is standard for general-purpose electronics. Consider the unshrouded nature for cost-sensitive designs where mating alignment is managed by the PCB or mating connector. Verify current ratings meet system load requirements.

Headers, Male Pins Part Context

This part belongs to the BergStik® family of headers, known for their reliability in high-volume manufacturing. Amphenol ICC (FCI) produces these connectors for diverse electronic applications. The product line emphasizes robust mechanical stability and consistent electrical performance across various environmental conditions.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 4-position, 2.54 mm pitch, right-angle unshrouded headers from compatible manufacturers. Ensure contact material and plating thickness match original specifications. Verify that alternative parts maintain the same thermal and current ratings.
