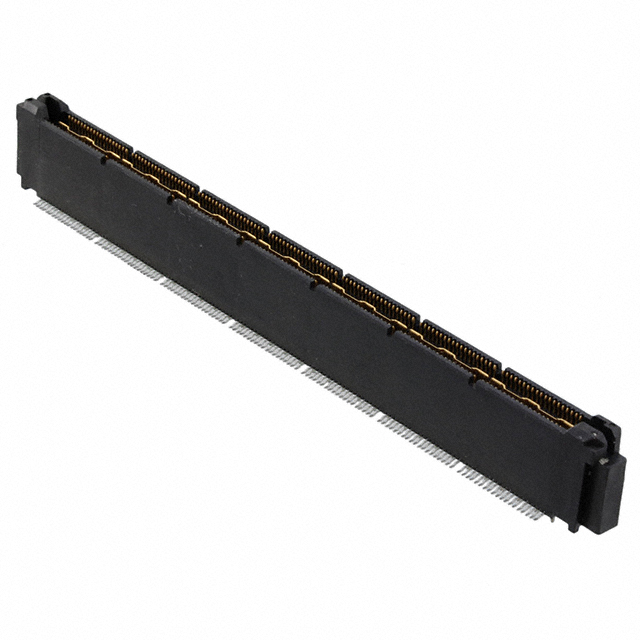

Arrays, Edge Type, Mezzanine (Board To Board) 767057-7 product image

767057-7

Description：CONN PLUG 266P SMD PALLAD-NICKEL
Series：MICTOR
Mfr：TE Connectivity AMP Connectors
Package：Tube

SKU:71e6051ca802 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: TE Connectivity AMP Connectors

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

767057-7 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PLUG 266P SMD PALLAD-NICKEL. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 767057-7

Description：CONN PLUG 266P SMD PALLAD-NICKEL
Series：MICTOR
Mfr：TE Connectivity AMP Connectors
Package：Tube
Connector Type：Plug, Outer Shroud Contacts
Number of Positions：266
Pitch：0.025" (0.64mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide, Ground Bus (Plane)
Contact Finish：Palladium-Nickel
Contact Finish Thickness：5.00µin (0.127µm)
Mated Stacking Heights：12.57mm, 21.6mm
Height Above Board：0.484" (12.29mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 767057-7
