784777221

$1.92

Description：FIXED IND 220UH 500MA 1.13OHM SM
Series：WE-PDA
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e83f862f543c Category: Fixed Inductors Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

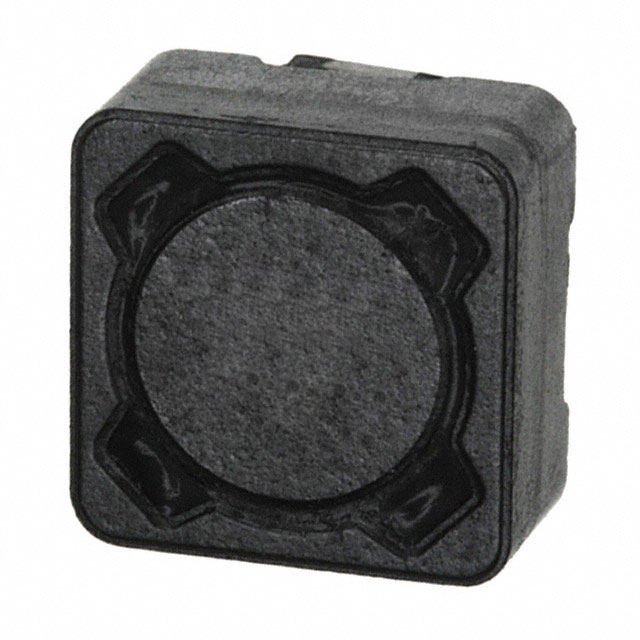

784777221 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is FIXED IND 220UH 500MA 1.13OHM SM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for 784777221

Description：FIXED IND 220UH 500MA 1.13OHM SM
Series：WE-PDA
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Nickel Zinc Ferrite (NiZn)
Inductance：220 µH
Tolerance：±20%
Current Rating (Amps)：500 mA
Current - Saturation (Isat)：550mA
Shielding：Shielded
DC Resistance (DCR)：1.13Ohm Max
Q @ Freq：-
Frequency - Self Resonant：3.9MHz
Ratings：AEC-Q200
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard, 4 Lead
Supplier Device Package：7345
Size / Dimension：0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max)：0.169" (4.30mm)
Features：-
