803-87-008-10-012101

Headers, Receptacles, Female Sockets Overview

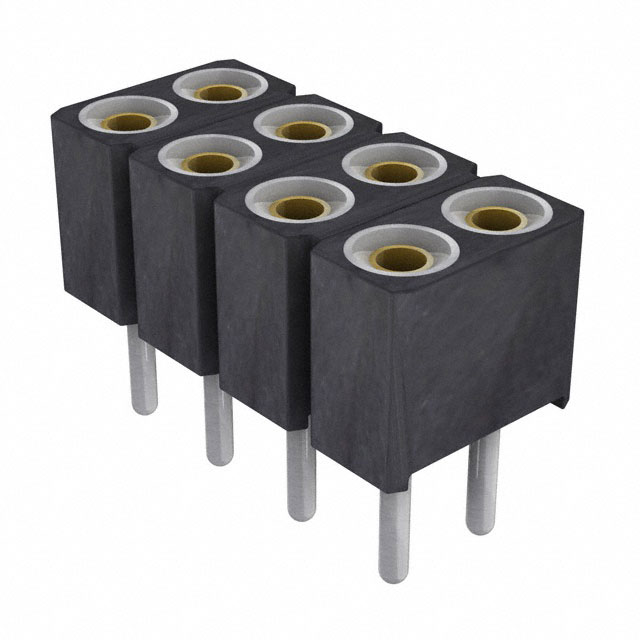

The Preci-Dip 803-87-008-10-012101 is a double-row SIL socket connector with an 8-position configuration and a 2.54 mm pitch. Designed for through-hole vertical mounting, it features tin-plated contacts made from beryllium copper and brass. The housing utilizes black glass-filled polyester, rated for operation between -55°C and 125°C. It supports board-to-board connections with a 150V rating and 12A current capacity.

Headers, Receptacles, Female Sockets Feature Summary

• Double-row straight socket design for compact board-to-board interconnections
• Through-hole vertical termination ensures secure PCB mounting
• Glass-filled polyester housing provides structural stability and thermal resistance

Headers, Receptacles, Female Sockets Applications

• Board-to-board signal transmission
• Industrial control system interconnects
• Electronic module stacking applications

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix to confirm contact plating and material composition, as variations exist within the 803 series. Ensure compatibility with mating header dimensions and verify that the double-row configuration meets the spatial requirements of the target assembly before finalizing procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a double-row female connector is required for high-current applications up to 12A. The 2.54 mm pitch suits standard density layouts, while the through-hole vertical style facilitates direct PCB integration. Consider the operating temperature range and voltage ratings to ensure alignment with the system's electrical environment.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Preci-Dip 803 series, which specializes in double-row socket connectors. The series offers various pin counts and pitch options, maintaining consistent mechanical standards for reliable electronic interconnections across diverse industrial and commercial hardware platforms.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other 8-pin, 2.54mm pitch double-row sockets from manufacturers such as Samtec or Molex. Verify that alternative parts match the vertical orientation, through-hole termination method, and current/voltage ratings to ensure functional equivalence.
