807-009-405-101

Edgeboard Connectors Overview

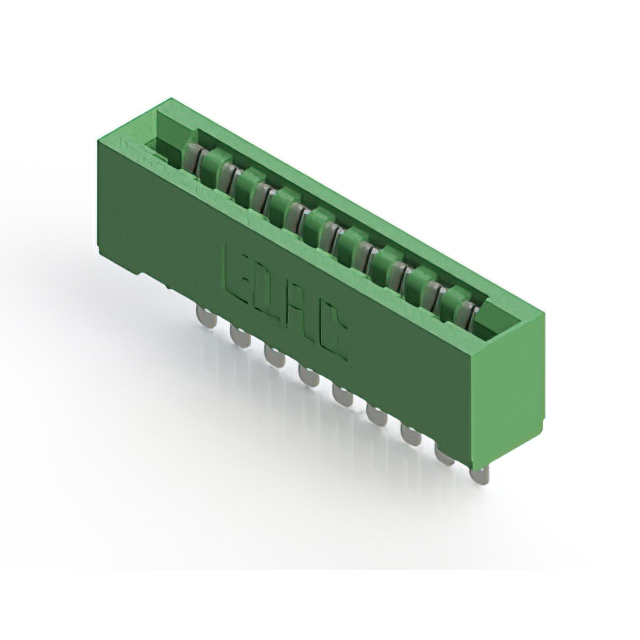

The EDAC Inc. model 807-009-405-101 is a standard single-row card edge connector receptacle designed for high-temperature environments. It features 9 positions with a 3.96 mm (0.156 inch) contact spacing and accommodates board thicknesses of 1.37 to 1.78 mm. The component utilizes copper alloy contacts with tin plating and a Diallyl Phthalate (DAP) insulator. Rated for 5 A current, it operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature rated construction using Diallyl Phthalate (DAP) insulating material
• Single-row configuration with tin-plated copper alloy contacts
• Compatible with double-sided card edge boards

Edgeboard Connectors Applications

• Harsh environment industrial electronics
• Medical interconnect systems
• Agricultural technology equipment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm contact termination style and mounting orientation. Ensure the application requires tin plating rather than gold, as this variant differs from other series options. Confirm that the single-row layout meets the signal density requirements of the target PCB design before procurement.

Edgeboard Connectors Selection Notes

Select this part when a single-row interface is sufficient for the circuit architecture. The 3.96 mm pitch suits applications where compactness is less critical than robust mechanical retention. Verify that the operating environment stays within the specified thermal limits for DAP materials and tin contact durability.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 Series, which provides various configurations of card edge connectors. The series offers multiple row counts, termination types, and plating options to support diverse electronic assembly needs across different industrial sectors.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 807 series variants such as 807-014 or 807-020 models if position count adjustments are required. Verify that alternative parts maintain the same 3.96 mm pitch and DAP insulation properties for direct compatibility.
