807-014-440-202

Edgeboard Connectors Overview

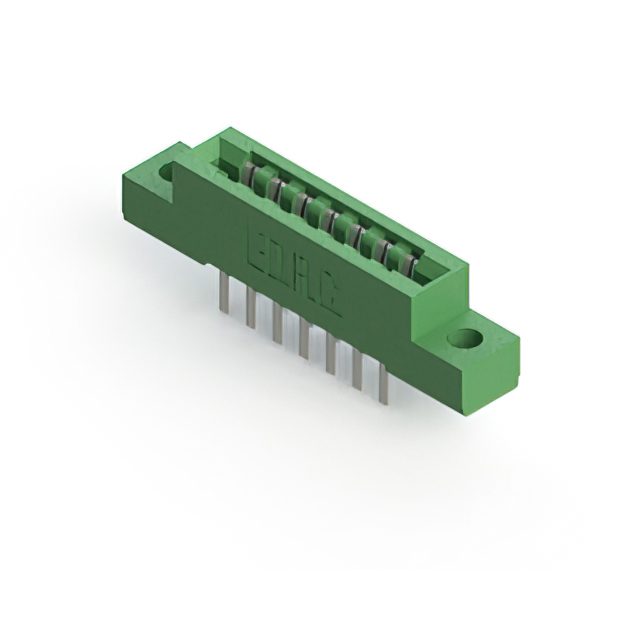

The EDAC Inc. 807-014-440-202 is a standard card edge connector receptacle featuring 14 positions arranged in a dual-row configuration with a 3.96 mm (0.156 inch) contact spacing. Designed for panel mount installation, this component utilizes solder pin termination and tin-plated copper alloy contacts. It accommodates printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The insulator body is constructed from green Diallyl Phthalate (DAP), providing a low-profile design suitable for high-temperature environments operating between -40°C and +125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact interface designed for double-sided card insertion
• Low-profile insulator body constructed from Diallyl Phthalate material
• Panel mount orientation with vertical solder pin termination
• Tin-plated copper alloy contacts ensuring reliable electrical connection

Edgeboard Connectors Applications

• High-temperature industrial control systems requiring robust interconnects
• Medical equipment utilizing EDAC medical interconnect solutions
• Agricultural technology applications needing durable connectors in harsh environments
• General-purpose electronic assemblies requiring standard card edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating and tail bend specifications, as variations exist within the 807 series. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure compatibility with the target PCB thickness of 1.57 mm to guarantee proper mechanical retention and electrical performance during operation.

Edgeboard Connectors Selection Notes

Select this part when a dual-row, 14-position connector with 3.96 mm pitch is required for panel-mounted applications. The tin-plated contacts offer a cost-effective solution compared to gold variants while maintaining durability. Consider the 807 series characteristics for high-temperature stability up to 125°C. Verify that the vertical mounting style aligns with the system's spatial constraints and board layout requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 High Temp Series, which provides reliable interconnect solutions for demanding environments. The series includes various configurations tailored for medical and agricultural technologies. The 807-014-440-202 specifically addresses needs for standard card edge connections with dual-side reading capabilities, ensuring stable performance across a wide temperature range.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 807 series parts such as 807-014-500-202 for gold-plated alternatives or different tail bends. Verify that substitute components maintain the same 3.96 mm pitch and 14-position count. Ensure mechanical dimensions and mounting styles are compatible with existing panel cutouts and PCB layouts before substitution.
