807-014-522-202

Edgeboard Connectors Overview

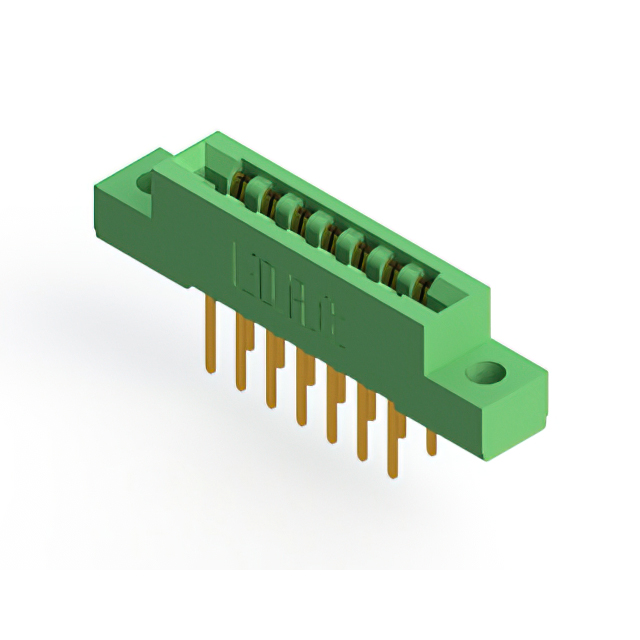

The EDAC Inc. 807-014-522-202 is a standard card edge connector receptacle designed for high-temperature applications within the 807 Series. It features 14 positions arranged in a double row with a 3.96 mm (0.156 inch) contact spacing. The component utilizes gold-plated copper alloy contacts and a green Diallyl Phthalate (DAP) insulator. It supports board thicknesses between 1.37 mm and 1.78 mm, operates from -40°C to +125°C, and employs a vertical panel mount installation style with solder pin termination.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding environments
• Dual-edge female contact configuration for secure daughter board connection
• Gold-plated copper alloy contacts ensuring reliable conductivity
• Vertical panel mount design with solder pin termination

Edgeboard Connectors Applications

• Medical interconnect systems requiring durable connections
• Agricultural technology equipment operating in harsh conditions
• Industrial control panels utilizing standard card edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact tail bend geometry and contact alignment specifications. Ensure the target application board thickness falls within the specified 1.37 mm to 1.78 mm range for proper engagement. Confirm that the vertical panel mount orientation aligns with the mechanical layout requirements of the host chassis.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 14-position interface with 3.96 mm pitch is required. The high-temperature rating and DAP material make it suitable for environments exceeding standard limits. Consider the vertical mounting style and solder pin termination method during PCB layout and enclosure design phases to ensure mechanical compatibility.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 High Temp Series, which specializes in robust card edge connectors for specialized sectors. The series provides various position counts and tail configurations while maintaining consistent electrical performance and thermal stability. The 807-014-522-202 specifically addresses needs for compact, high-reliability dual-edge connections in regulated industries.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other 807 Series variants with matching 14-position dual-row layouts, such as 807-014-500-202 or 807-014-521-112, provided the tail bend codes and mounting dimensions are verified for interchangeability.
