807-020-500-202

Edgeboard Connectors Overview

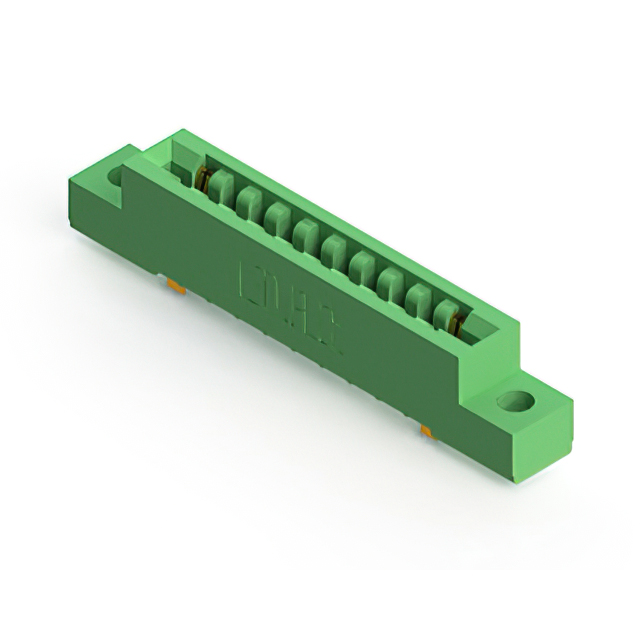

The EDAC Inc. 807-020-500-202 is a standard card edge connector receptacle from the 807 High Temp series. It features 20 positions in a double-row configuration with a 3.96 mm (0.156 inch) contact spacing. Designed for vertical panel mount installation, it utilizes solder pin termination and gold-plated copper alloy contacts. The insulator is constructed from Diallyl Phthalate (DAP), supporting a board thickness of 1.57 mm. Rated for 5 A current, it operates within a temperature range of -40°C to +125°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• High-temperature capability up to +125°C using Diallyl Phthalate insulation
• Double-row vertical receptacle design for dual-sided card engagement
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Panel mount construction with solder pin termination for secure attachment

Edgeboard Connectors Applications

• Medical interconnect solutions requiring high thermal stability
• Agricultural technology systems operating in harsh environments
• Industrial control panels utilizing standard card edge interfaces
• Electronic assemblies requiring robust vertical board connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the official EDAC datasheet to confirm exact tail bend dimensions and contact coding. Ensure the ordering part number matches the required board thickness tolerance of 1.57 mm. Confirm RoHS compliance status through the manufacturer's latest documentation before finalizing procurement specifications.

Edgeboard Connectors Selection Notes

Select this component when a vertical, double-row card edge interface is required for high-temperature applications. The 3.96 mm pitch suits standard daughter boards, while the DAP housing provides necessary thermal resilience. Verify that the panel mount style aligns with the mechanical enclosure design and that the 5 A rating meets the circuit load requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 series, specialized for high-temperature environments. The series utilizes Diallyl Phthalate insulation to maintain performance at elevated temperatures. The 807-020-500-202 specifically denotes a 20-position double-row variant with standard tail configurations, distinct from bent-tail or extended versions found in other SKUs.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC part numbers sharing the 807 prefix, 20 position count, and 3.96 mm pitch. Verify identical mounting style and contact plating before substitution. Consult the official EDAC 807/857 Series Ordering Guide for direct equivalents.
