807-062-524-204

Edgeboard Connectors Overview

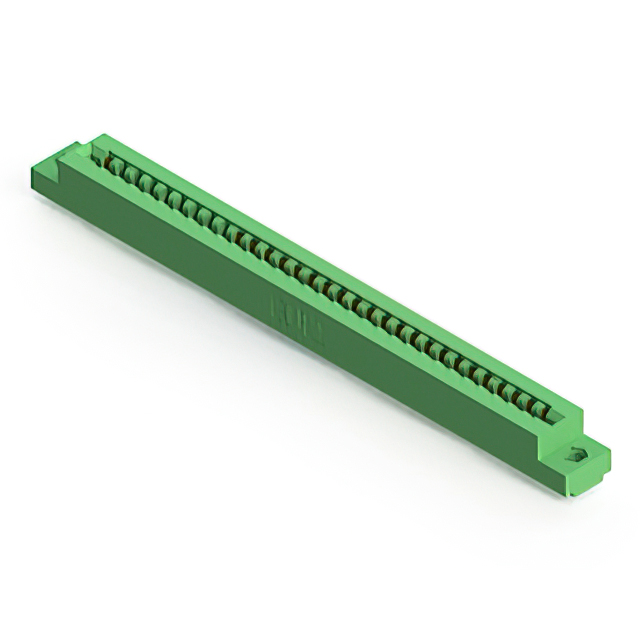

The EDAC Inc. 807-062-524-204 is a high-temperature standard card edge connector receptacle from the 807 series. It features 62 positions with a 3.96 mm (0.156 inch) pitch arranged in two rows. Designed for through-hole panel mount installation, it utilizes gold-plated copper alloy contacts and Diallyl Phthalate (DAP) insulation. The component supports double-sided card reading and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding environments
• Dual-row configuration enabling double-sided board connectivity
• Gold-plated contacts ensure reliable signal transmission

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact contact tail geometry and plating thickness. Confirm that the required panel cutout dimensions align with the manufacturer's mechanical drawings. Ensure compatibility with the target PCB thickness specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when dual-row connectivity and high thermal stability are required. The 3.96 mm pitch accommodates standard daughter boards. Verify that the panel mount style fits the enclosure design constraints. Consider the operating temperature range limits relative to the application environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 High Temp Series, which specializes in durable connectors for harsh conditions. The series offers various position counts and mounting styles. It is part of EDAC's broader portfolio serving medical and agricultural sectors with robust interconnect solutions.

Edgeboard Connectors Replacement Considerations

Check for direct substitutes within the 807 series with matching pin counts and pitch. Verify mechanical footprint compatibility if considering alternative manufacturers. Ensure electrical ratings meet or exceed original specifications.
