824520161 is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is TVS DIODE 16VWM 26VC DO214AA. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for 824520161

• Description：TVS DIODE 16VWM 26VC DO214AA
• Series：WE-TVS
• Mfr：Würth Elektronik
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：16V (Max)
• Voltage - Breakdown (Min)：17.81V
• Voltage - Clamping (Max) @ Ipp：26V
• Current - Peak Pulse (10/1000µs)：23.1A
• Power - Peak Pulse：600W
• Power Line Protection：No
• Applications：-
• Capacitance @ Frequency：-
• Operating Temperature：-65°C ~ 150°C (TA)
• Mounting Type：Surface Mount

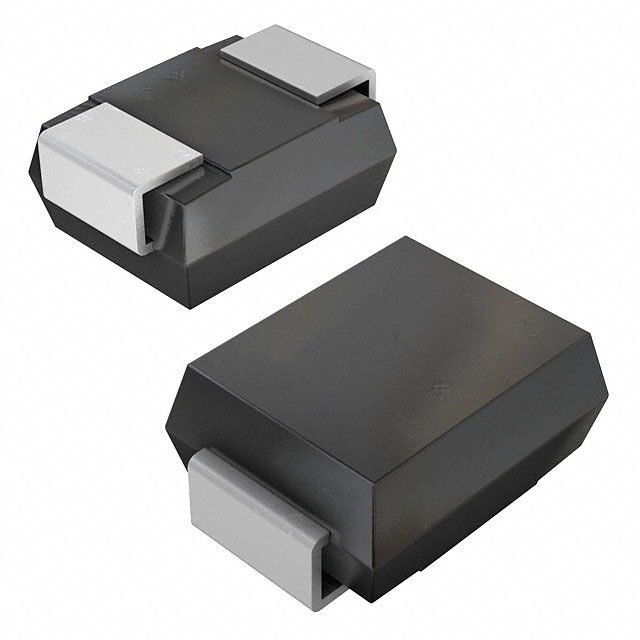

• Package / Case：DO-214AA, SMB
• Supplier Device Package：DO-214AA
• Unidirectional Channels：1
• Grade：Automotive
• Qualification：-

Tvs Diodes datasheet and documents for 824520161
