833-050-524-804

Edgeboard Connectors Overview

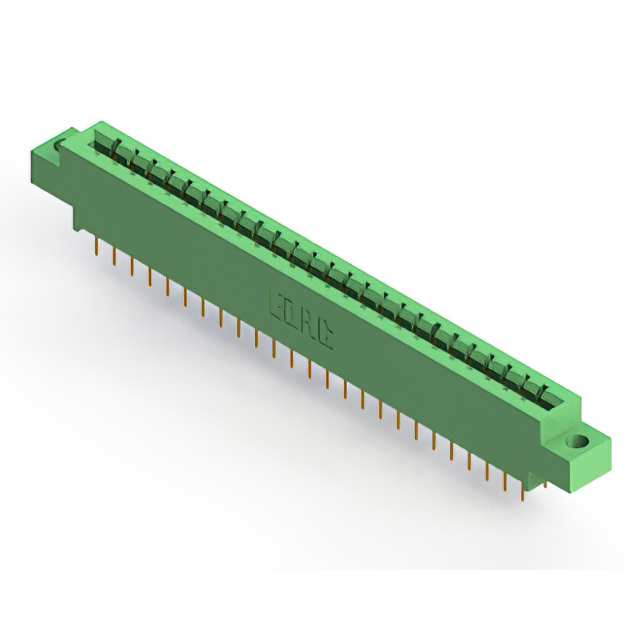

The EDAC Inc. 833-050-524-804 is a standard card edge connector designed for dual-edge board insertion. It features 50 positions with a 0.156-inch (3.96 mm) pitch and accepts board thicknesses between 0.054 and 0.070 inches. The connector utilizes female copper alloy contacts with gold plating and a green thermoplastic polyester housing. Rated for 3 A current, it supports panel mounting in a vertical orientation with solder pin termination.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board retention
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester insulation provides structural stability
• Vertical panel mount design facilitates standardized integration

Edgeboard Connectors Applications

• Industrial control system interconnects
• Medical device circuit board connections
• Agricultural technology equipment interfaces
• General-purpose electronic module assembly

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm exact housing color and contact plating specifications. Ensure compatibility with target PCB thickness limits of 0.054 to 0.070 inches. Confirm that the vertical panel mount style aligns with mechanical enclosure requirements. Check RoHS compliance documentation for regulatory adherence prior to procurement.

Edgeboard Connectors Selection Notes

Select this component when dual-edge connectivity is required for 50-position applications. The 3.96 mm pitch suits standard industrial board layouts. Verify thermal operating range requirements against the specified material properties. Consider the green housing color for visual identification if necessary within the assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 833 series of standard card edge connectors. The series offers various position counts and mounting styles. The 833 series is widely used in industrial and medical sectors requiring robust interconnect solutions. EDAC provides comprehensive support materials including datasheets and CAD models for this family.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other EDAC 833 series variants only if electrical and mechanical parameters match exactly.
