833-084-523-202

Edgeboard Connectors Overview

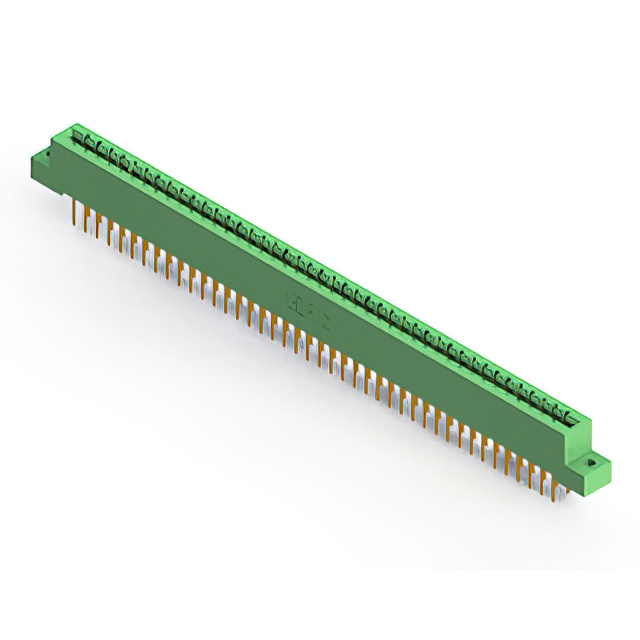

The EDAC Inc. part number 833-084-523-202 is a standard card edge connector belonging to the 833 series. It features a dual female contact configuration with 84 positions arranged in two rows. The connector utilizes a pitch of 0.156 inches (3.96 mm) and employs gold-plated contacts for reliable signal transmission. Designed for panel mount installation, this vertical connector accommodates board thicknesses up to 1.57 mm. The housing is constructed from green-colored material, providing visual identification within assembly environments.

Edgeboard Connectors Feature Summary

• Dual edge female contact design supports high-density interconnection requirements
• Gold-plated terminals ensure stable electrical performance and corrosion resistance
• Vertical panel mount style facilitates secure structural integration
• Green housing provides distinct visual identification during assembly

Edgeboard Connectors Applications

• Medical interconnect solutions requiring reliable signal pathways
• Agricultural technology systems operating in harsh environments
• Industrial control panels utilizing standard card edge interfaces
• Communication equipment backplanes needing robust connectivity

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, plating specifications, and mounting orientation. Ensure compatibility with target PCB thickness limits before procurement. Confirm regional availability through authorized distributors as supply status may vary by location. Cross-reference the complete part number to avoid confusion with similar series variants that differ only in minor mechanical attributes.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge interface with 84 positions is required for panel-mounted applications. The 3.96 mm pitch dictates compatible PCB trace spacing and mating connector dimensions. Verify that the target system operates within the environmental tolerances defined for the 833 series. Consider the vertical mounting angle and panel cutout requirements during mechanical design phases to ensure proper fit and alignment.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 833 series, which offers a comprehensive range of standard card edge connectors. The series provides various position counts and housing colors to suit different application needs. EDAC designs these components to meet rigorous industry standards for durability and electrical performance. The 833 series is widely utilized across multiple sectors including medical, industrial, and agricultural technologies.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official EDAC resources for cross-referencing alternatives. Ensure any replacement matches the original pitch, position count, and mounting style. Verify that mechanical dimensions and electrical ratings remain identical to prevent integration issues.
