842-036-542-107

Edgeboard Connectors Overview

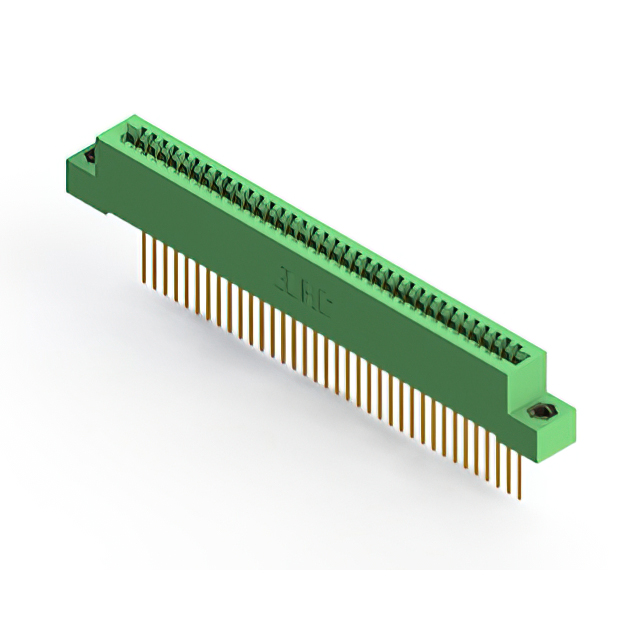

The EDAC Inc. 842-036-542-107 is a standard card edge connector receptacle designed for high-temperature applications. It features 36 positions with a 2.54 mm (0.100 inch) pitch and supports a single row configuration. The component utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator. It is intended for through-hole mounting on printed circuit boards with a maximum thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding environments
• Gold-plated contacts ensure reliable signal transmission
• Single-row female connector design for board-to-board interfacing

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific suffix code to confirm the exact contact plating thickness, insulation color, and termination style. Confirm that the supplier provides official datasheets matching the manufacturer's specifications. Ensure compatibility with the target PCB thickness and mounting requirements before finalizing the order.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 36-position connection is required in high-temperature scenarios. Verify that the 2.54 mm pitch aligns with the mating card edge layout. Consider the through-hole mounting style and verify that the thermal resistance of the green thermoplastic polyester housing meets the operational temperature limits of the application.

Edgeboard Connectors Part Context

This part belongs to the EDAC 842 series of standard card edge connectors. The series offers various position counts and configurations for general-purpose electronic applications. The 842 designation typically indicates a specific line of high-temperature receptacles within the broader EDAC portfolio.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 842 series parts such as 842-035-558-112 or 842-036-542-208 for alternative position counts or variations. Ensure any substitute maintains the same 2.54 mm pitch and single-row format.
