845-008-524-602

Edgeboard Connectors Overview

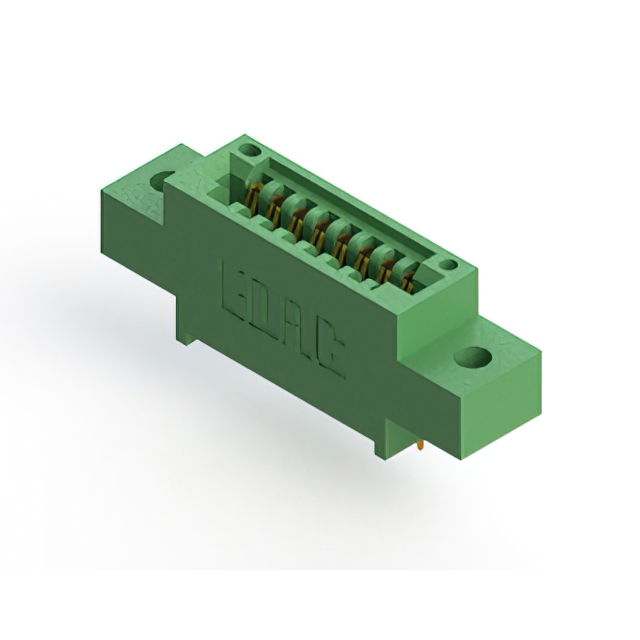

The EDAC Inc. 845-008-524-602 is an edgeboard connector designed for single-edge card applications. It features eight female contacts with a 0.100-inch (2.54 mm) pitch and a 0.200-inch (5.08 mm) row spacing. The unit utilizes gold-plated copper alloy terminals housed in green Diallyl Phthalate (DAP). It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The connector supports a current rating of 3 A and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-profile insulator body construction
• Gold-plated contact surfaces for reliable signal transmission
• Single-row female terminal configuration

Edgeboard Connectors Applications

• Single-edge card edge interconnection
• Panel-mounted electronic assemblies
• Industrial control system interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 845 Series Ordering Guide to ensure correct termination style and housing color. Confirm that the target PCB thickness aligns with the component's acceptance specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a single-row, high-profile connector is required for 0.062-inch thick cards. Ensure the application environment remains within the specified -40°C to +125°C operational limits and requires a 3 A current capacity per contact.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 High Temperature series, which provides robust connectivity solutions for demanding environments. The series offers various pin counts and termination options, utilizing durable DAP materials for superior thermal stability compared to standard thermoplastics.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 845 Series cross-reference documentation for verified substitute part numbers. Do not assume compatibility with generic connectors due to specific dimensional requirements for board thickness and panel mounting.
