845-024-556-204

Edgeboard Connectors Overview

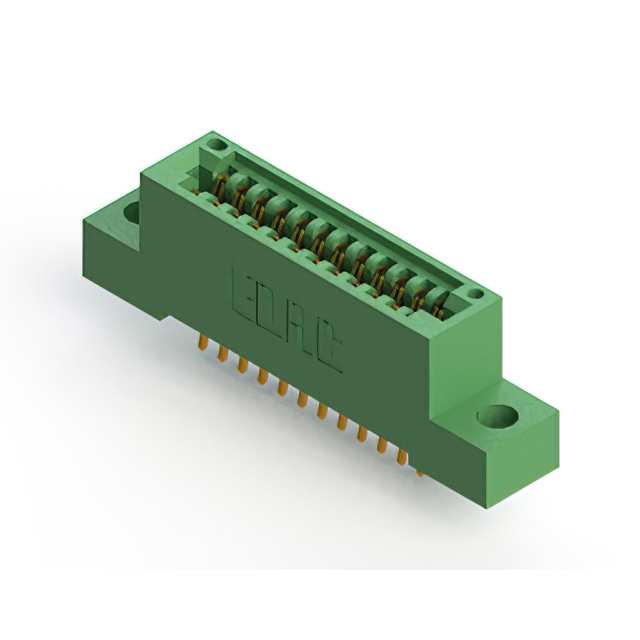

The EDAC Inc. 845-024-556-204 is a standard card edge connector from the 845 series, designed for single-row applications with a 0.100-inch (2.54mm) pitch. It features 24 positions and utilizes gold-plated contacts on a copper alloy base. The unit employs a solder pin termination method and is constructed with Diallyl Phthalate (DAP) insulation. Rated for operation between -40°C and +125°C, this component supports board thicknesses of approximately 1.57mm.

Edgeboard Connectors Feature Summary

• High-temperature resistant DAP insulator construction
• Gold-plated contact surfaces for reliable signal transmission
• Single-row configuration with vertical panel mounting style

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature stability
• Automotive electronic circuit interfaces
• Communication equipment backplanes
• Power supply module connections

Edgeboard Connectors Procurement Notes

Verify the complete part number against official EDAC documentation to ensure correct series and termination specifications. Confirm that the required board thickness aligns with the connector's mechanical design limits. Check RoHS compliance status if environmental regulations apply to your specific manufacturing process or end-use application requirements.

Edgeboard Connectors Selection Notes

Select this model when a single-row interface with a 2.54mm pitch is required for vertical panel installation. Ensure the mating card thickness matches the connector's specified range. Consider the operating temperature environment to confirm suitability for high-heat scenarios where standard materials might fail.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 series, which specializes in high-temperature card edge connectors. The series provides various mounting options and contact terminations. This specific part represents a standard configuration within that lineup, focusing on durability and thermal performance for demanding electronic environments.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC ordering guide for direct substitutes within the 845 series. Verify that any alternative maintains identical pitch, row count, and termination type to ensure mechanical compatibility.
