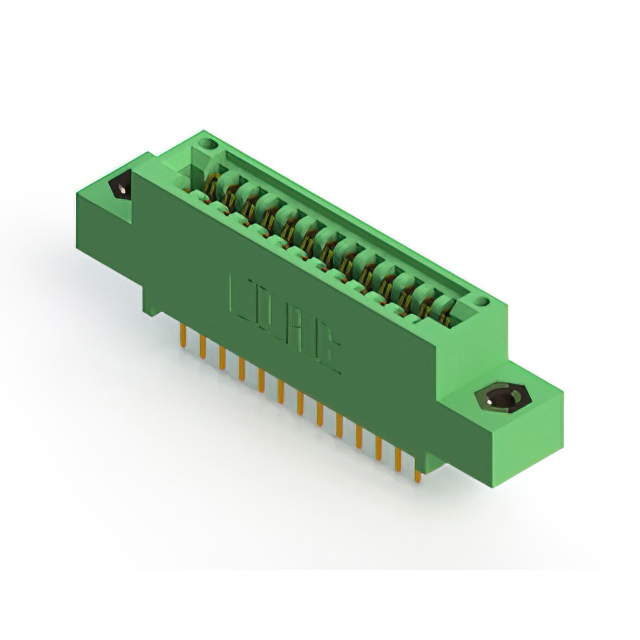

845-026-525-508

$45.32

Description：CONN EDGE DUAL FMALE 26POS 0.100
Series：845
Mfr：EDAC Inc.
Package：Bulk

SKU:dc7bc9efadd7 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

845-026-525-508 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 26POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 845-026-525-508

Description：CONN EDGE DUAL FMALE 26POS 0.100
Series：845
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：13
Number of Positions：26
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Top Mount Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 845-026-525-508

845-026-525-508

Edgeboard Connectors Overview

The EDAC Inc. 845-026-525-508 is a standard card edge connector from the 845 High Temp series, designed for dual-edge board insertion. It features 26 positions with a 0.100 inch (2.54 mm) contact pitch and a 0.200 inch (5.08 mm) row spacing. The connector utilizes gold-plated contacts and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with a high-profile insulator body, it supports vertical panel mounting applications.

Edgeboard Connectors Feature Summary

Dual-edge female connector design for secure board retention
Gold-plated contacts ensure reliable signal transmission
High-profile insulator body accommodates specific board thicknesses

Edgeboard Connectors Applications

Vertical panel mount interconnects
High-temperature electronic assemblies
Standard card edge interface systems

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized channels due to potential supply chain variations. Confirm that the specific ordering suffix matches the required dual-edge configuration and gold plating specifications. Ensure compatibility with the target PCB thickness of 0.062 inches before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge connection is required for 26-position interfaces. The 0.100-inch pitch suits standard board layouts, while the high-temperature rating supports demanding operational environments. Verify panel mounting requirements align with the vertical installation style.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 series, characterized by high-temperature performance capabilities. The series offers various position counts and configurations, with this specific part providing a dual-edge solution for robust mechanical and electrical connections in specialized industrial applications.
