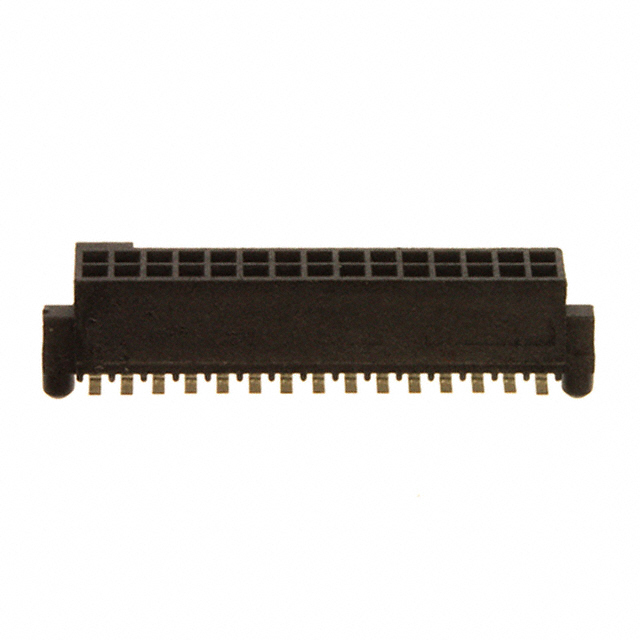

87024-615LF

87024-615LF is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN RCPT 30POS 0.05 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 87024-615LF

• Description：CONN RCPT 30POS 0.05 GOLD SMD
• Series：Rib-Cage™
• Mfr：Amphenol ICC (FCI)
• Package：Tube
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：30
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold or Gold, GXT™
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Insulation Color：Natural
• Insulation Height：0.187" (4.75mm)
• Contact Length - Post：-
• Operating Temperature：-
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Guide
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 87024-615LF
