Headers, Receptacles, Female Sockets Overview

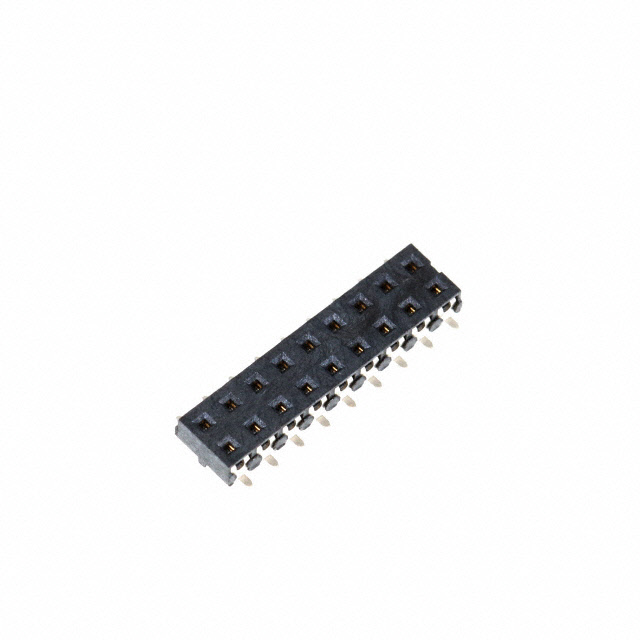

The Molex 87340-1824 is a Milli-Grid receptacle connector featuring a 2.00 mm (0.079 inch) pitch and 18 circuits. Designed for surface mount technology, it utilizes a very low profile top entry configuration with integrated locating pegs to ensure precise PCB alignment. The contacts are gold-plated with a minimum thickness of 0.38 µm to provide reliable signal transmission. This component belongs to the high-density series intended for space-constrained electronic assemblies.

Headers, Receptacles, Female Sockets Feature Summary

• Very low profile design facilitates compact board layouts
• Top entry orientation allows flexible cable routing
• Integrated locating pegs ensure accurate positioning during assembly

Headers, Receptacles, Female Sockets Applications

• High-density signal interconnects in consumer electronics
• Space-constrained industrial control modules
• Compact medical device circuitry

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the official Molex datasheet to confirm contact plating specifications and packaging type. Ensure the selected variant matches the required surface mount termination style and housing color. Cross-reference the part number with authorized distributors to confirm current availability status and lead times before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 2.00 mm pitch surface mount receptacle with a low profile is required. The 18-circuit count suits applications needing moderate density without excessive board area usage. Verify that the PCB layout accommodates the specified footprint and that the top entry orientation aligns with the system's mechanical constraints.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Molex Milli-Grid family, which specializes in miniaturized connectors for high-density applications. The series offers various configurations including different pitches and termination styles. The 87340-1824 specifically addresses the need for reliable, compact connections in modern electronic devices where space is limited.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult the official Molex cross-reference guide for verified substitute part numbers. Ensure any replacement maintains the same 2.00 mm pitch, 18-position count, and surface mount compatibility. Verify mechanical dimensions and electrical ratings match the original design requirements.
