878320812

Headers, Male Pins Overview

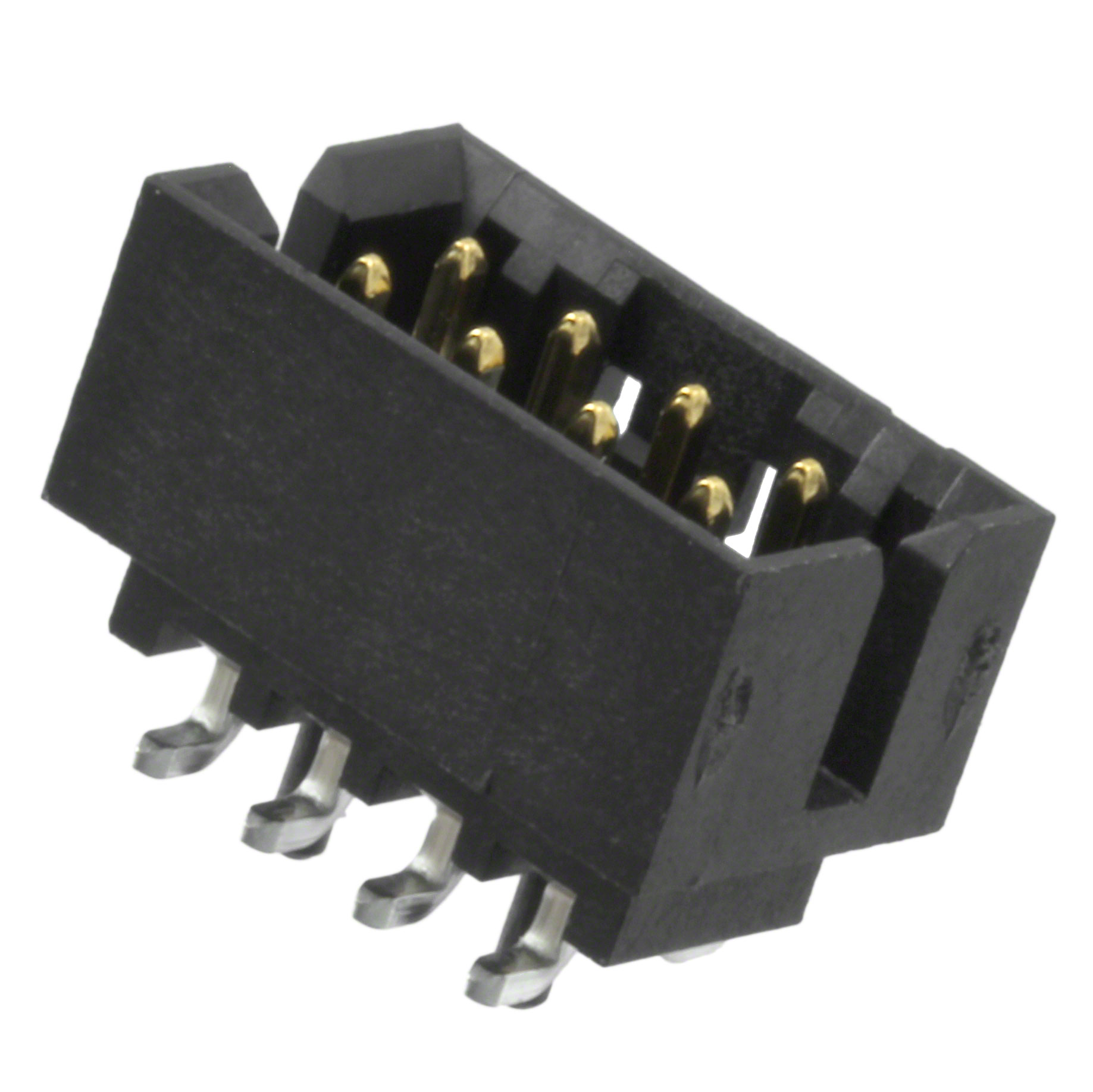

The Molex part number 87832-0812 is a Compact 1mm-pitch wire-to-board connector designed for high performance and durability in harsh conditions. It supports up to 864W to peripheral devices as defined within applicable standards. The component features a dual-row vertical surface mount PCB header configuration with shrouded housing. It provides eight circuits with 0.38µm gold plating on contact surfaces. Additional structural characteristics include dual side slots and center polarization to ensure correct mating alignment.

Headers, Male Pins Feature Summary

• Compact 1mm pitch design optimized for space-constrained applications
• High power capability supporting up to 864W output
• Robust construction engineered for operation in harsh environmental conditions
• Integrated center polarization mechanism for precise connector alignment

Headers, Male Pins Applications

• Peripheral device interconnects requiring high power delivery
• Harsh environment electronic assemblies demanding durable connections
• Space-constrained board-to-wire or board-to-board configurations

Headers, Male Pins Procurement Notes

Verify the specific datasheet version and compliance documentation prior to procurement. Confirm that the 864W power rating aligns with your system's thermal management capabilities. Ensure the 1mm pitch dimension matches your PCB footprint requirements. Check for any updated RoHS or REACH declarations relevant to your region.

Headers, Male Pins Selection Notes

Select this connector when a compact 1mm pitch is required alongside significant power handling capabilities. Consider the shrouded design for improved mating guidance compared to open headers. Evaluate the dual-side slot feature if mechanical stability against lateral forces is critical. Verify that the center polarization fits your assembly workflow without requiring additional locking mechanisms.

Headers, Male Pins Part Context

This component belongs to the Milli-Grid series of PCB headers. It represents a surface-mount solution offering vertical orientation for direct board integration. The dual-row layout maximizes circuit density within a minimal footprint. Gold plating ensures reliable conductivity over repeated mating cycles.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Verify compatibility with existing tooling and mating connectors before considering alternative sources.
