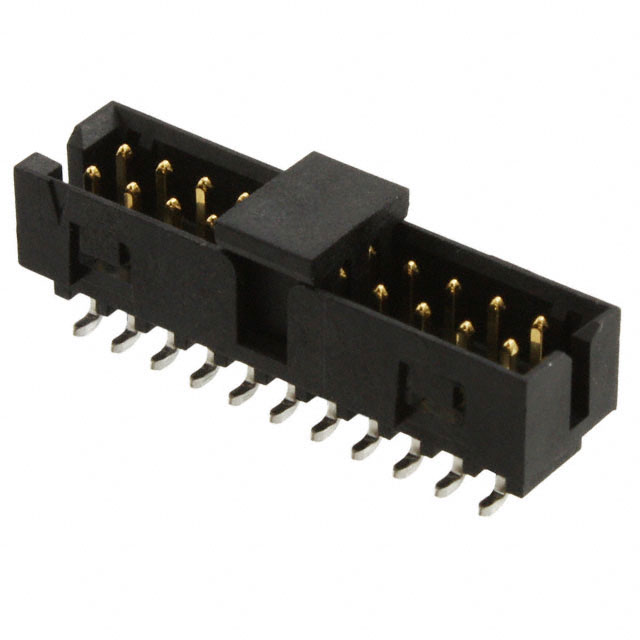

878326023

878326023 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Molex. Its product description is CONN HEADER SMD 22POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 878326023

• Description：CONN HEADER SMD 22POS 2MM
• Series：Milli-Grid 87832
• Mfr：Molex
• Package：Tape & Reel (TR)
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：22
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Latch Holder
• Contact Length - Mating：0.141" (3.60mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.252" (6.40mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Contact Finish - Post：Tin
• Contact Material：Phosphor Bronze
• Insulation Material：Polyamide (PA), Nylon, Glass Filled
• Features：Board Guide, Keying Slot, Pick and Place
• Operating Temperature：-55°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 878326023
