Edgeboard Connectors Overview

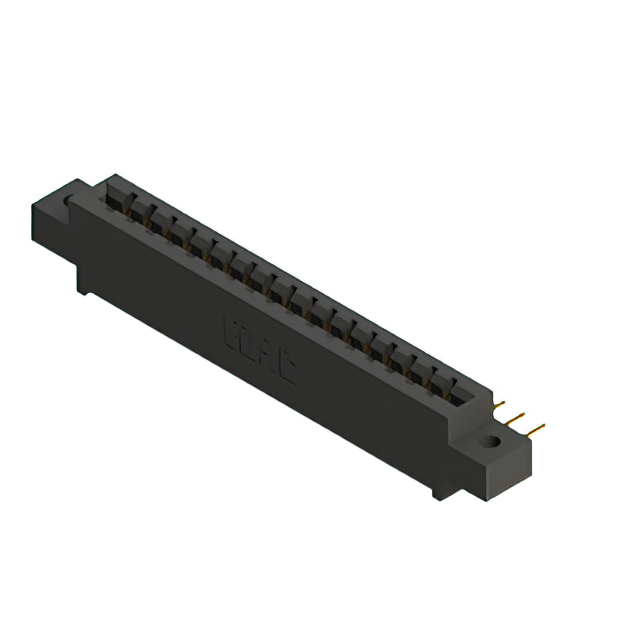

The EDAC Inc. 887-017-559-602 is a high-temperature card edge connector from the 887 series, designed for single-row applications with 17 positions. It features a 0.156-inch (3.96mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component utilizes a female contact type with gold plating on copper alloy terminals to ensure reliable signal transmission. It employs a solder pin termination method and is constructed with a Polyphenylene Sulfide (PPS) insulator body rated UL 94V-0. The connector supports a wide operating temperature range from -40°C to +125°C and includes panel mount installation options.

Edgeboard Connectors Feature Summary

• High-temperature capability with PPS insulator material rated for -40°C to +125°C operation
• Gold-plated copper alloy contacts with 0.156-inch spacing for reliable connectivity
• Designed for 0.062-inch nominal PCB thickness with solder pin termination
• Panel mount configuration with flange features for secure mechanical installation

Edgeboard Connectors Applications

• Medical interconnect solutions requiring high thermal stability
• Agricultural technology equipment operating in harsh environments
• Industrial control systems needing durable card edge connections
• Communication infrastructure components subject to elevated temperatures

Edgeboard Connectors Procurement Notes

Verify the specific tail pin style and mounting ear configuration against the official EDAC datasheet, as the 887 series offers multiple variations including offset or flush ears and different hole patterns. Confirm that the required PCB thickness aligns with the standard 0.062-inch specification to ensure proper mating force and electrical contact. Check for any RoHS compliance documentation if environmental regulations apply to your project. Ensure the selected variant matches the exact drawing number for dimensional accuracy during integration.

Edgeboard Connectors Selection Notes

Select this model when a high-profile connector is needed for 17-position single-row applications with strict thermal requirements. The PPS material provides superior heat resistance compared to standard thermoplastics. Consider the available tail pin styles such as bent insert board or wire hole types based on the assembly process. Verify that the panel mount flange dimensions fit the enclosure design constraints. This series is suitable for applications demanding robust performance under thermal stress.

Edgeboard Connectors Part Context

The 887-017-559-602 belongs to the EDAC 887 Series of high-temperature card edge connectors. This series is characterized by its use of Polyphenylene Sulfide (PPS) insulation, which distinguishes it from lower-temperature alternatives like the 837 series that uses DAP material. The 887 series is engineered for demanding environments where thermal stability is critical, offering consistent performance across a wide temperature spectrum while maintaining reliable electrical connections through gold-plated contacts.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the 887 series include models with identical position counts and mounting configurations but different tail pin styles, such as 887-017-558-602 or 887-017-559-101. Cross-series replacement with the 837 series is possible only if thermal requirements are relaxed, as the 837 uses DAP insulation. Ensure any substitute maintains the same 0.156-inch pitch and 0.062-inch board thickness compatibility.
