887-024-559-612

Edgeboard Connectors Overview

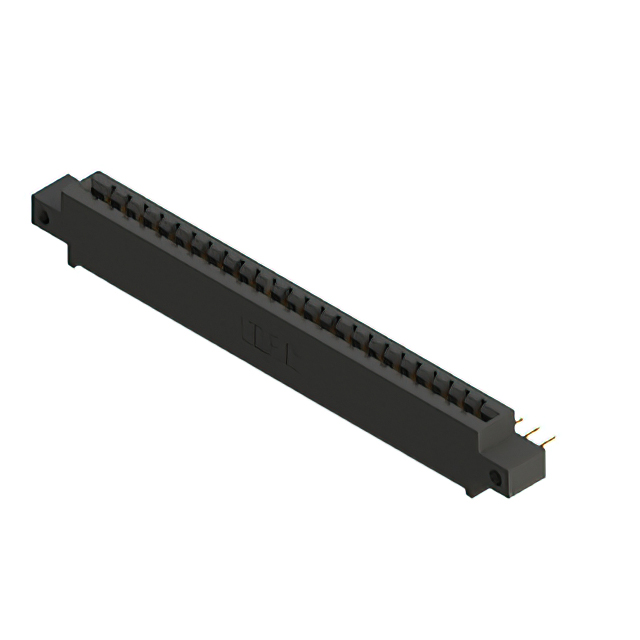

The EDAC Inc. 887-024-559-612 is a single-row standard card edge connector receptacle featuring 24 positions with a 3.96 mm (0.156 inch) pitch. Designed for high-temperature environments, it utilizes a Polyphenylene Sulfide (PPS) insulator rated UL 94V-0 and copper alloy contacts with gold plating. The component supports a maximum current rating of 3 A and operates within a temperature range of -40°C to +125°C. It employs a wire wrap termination style and includes offset mounting ears with Ø3.25mm through-holes for secure panel installation.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using Polyphenylene Sulfide (PPS) housing material
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Wire wrap termination style for secure circuit board connection
• Offset mounting ears with through-holes for stable panel integration

Edgeboard Connectors Applications

• Industrial control systems requiring high thermal stability
• Telecommunications equipment interfaces
• Automotive electronic modules
• Aerospace and defense instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official documentation to confirm exact mechanical variations such as lug configuration or pin style. Ensure compatibility with the target PCB thickness of 1.57 mm (0.062 inch). Cross-reference the latest datasheet revisions to confirm material specifications and environmental compliance status prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a single-row card edge interface with a 3.96 mm pitch is required for high-temperature applications up to 125°C. The wire wrap termination is suitable for prototyping or low-volume production where soldering pins is preferred. Verify that the offset mounting ear design aligns with the enclosure constraints and panel mounting requirements of the specific assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 887 series of high-temperature card edge connectors. The series offers various position counts and termination styles, utilizing PPS insulation for superior thermal performance compared to standard thermoplastics. The 887 series is designed for robust connectivity in demanding industrial and commercial environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 887 series variants with matching 24-position count, single-row configuration, and wire wrap termination. Ensure any replacement maintains the 3.96 mm pitch and compatible mounting ear geometry for direct interchangeability without mechanical modification.
