892-016-559-107

Edgeboard Connectors Overview

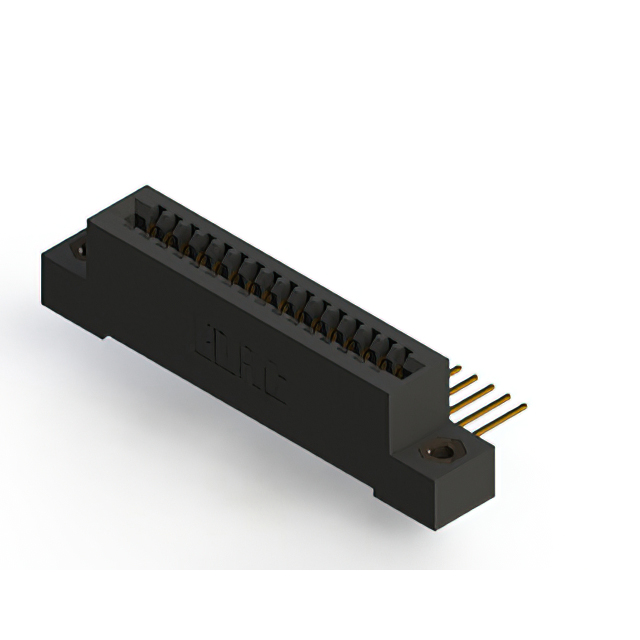

The EDAC Inc. 892-016-559-107 is a standard card edge connector designed for single-edge board applications. It features 16 positions with a 0.100-inch (2.54 mm) pitch and accepts board thicknesses ranging from 0.054 to 0.070 inches (1.37 to 1.78 mm). The connector utilizes female contacts made of copper alloy with gold plating, housed in a black polyphenylene sulfide (PPS) insulator. It supports panel mount installation at a right angle and offers a high-temperature operating range.

Edgeboard Connectors Feature Summary

• High-temperature rated construction using polyphenylene sulfide insulation
• Single-edge female contact configuration for reliable signal transmission
• Right-angle panel mount design for space-efficient integration
• Gold-plated copper alloy contacts for corrosion resistance

Edgeboard Connectors Applications

• Industrial control systems requiring high thermal stability
• Telecommunications equipment interfaces
• Medical device circuit board connections
• Energy sector instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating thickness, and mounting style variations. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status through current manufacturer datasheets as regulatory requirements may evolve over time.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, single-edge connection is required for boards within the specified thickness range. Consider the high-temperature rating for environments exceeding standard limits. Verify that the 16-position capacity aligns with circuit requirements and that panel mounting fits the mechanical enclosure constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 892 series, which specializes in high-temperature card edge connectors. The series is engineered for demanding industrial and commercial applications where thermal resilience and durable electrical connections are critical. It complements other EDAC interconnect solutions by providing specialized thermal performance options.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified equivalents. Cross-reference pitch, position count, and mounting orientation with alternative models from the same manufacturer to ensure mechanical and electrical compatibility without redesigning the host assembly.
