892-022-500-112

Edgeboard Connectors Overview

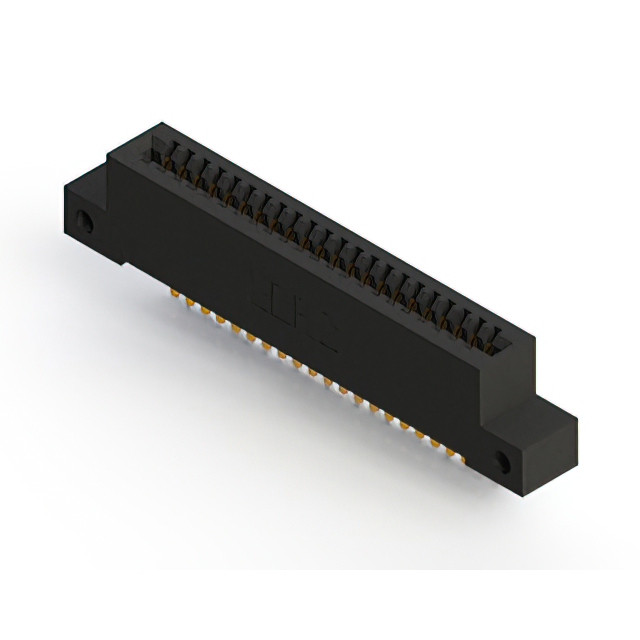

The EDAC Inc. 892-022-500-112 is a high-temperature standard card edge connector receptacle from the 892 Series. It features 22 positions with a 0.100 inch (2.54 mm) pitch and supports a board thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts for reliable signal transmission and is housed in a black Polyphenylene Sulfide (PPS) shell. Designed for panel mount installation, it offers a vertical orientation and employs solder termination. Rated for 3 A current, it operates within a temperature range of -40 C to +125 C and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• High-temperature capability utilizing Polyphenylene Sulfide housing material
• Gold-plated copper alloy contacts ensure durable electrical connectivity
• Vertical panel mount design facilitates secure board insertion

Edgeboard Connectors Applications

• Industrial control systems requiring thermal stability
• Communication equipment interfaces
• Medical device circuitry connections
• Energy sector hardware assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix configuration against official EDAC documentation to confirm exact pin count and termination style. Ensure compatibility with target PCB edge thickness and mounting requirements. Cross-reference RoHS compliance status through manufacturer datasheets prior to integration into regulated product lines.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance is critical for the application environment. The 22-position single-row layout suits compact designs needing robust vertical interconnects. Verify that the solder termination method aligns with available assembly processes and that the PPS material meets chemical resistance needs.

Edgeboard Connectors Part Context

This part belongs to the EDAC 892 Series, specialized for high-temperature card edge applications. It complements other EDAC connectors by offering enhanced thermal resilience compared to standard series. The series supports various position counts and termination options, providing flexibility for diverse electronic system architectures requiring reliable vertical mating.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified equivalents. Generic cross-references may not match the specific high-temperature rating or PPS material properties required for this application.
