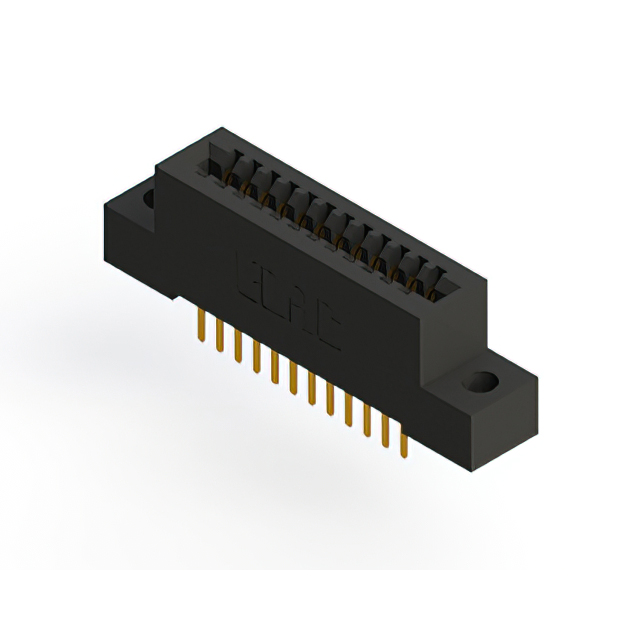

892-024-520-204

$37.31

Description：CONN EDGE DUAL FMALE 24POS 0.100
Series：892
Mfr：EDAC Inc.
Package：Bulk

SKU:4cf42cec42ce Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

892-024-520-204 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 24POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 892-024-520-204

Description：CONN EDGE DUAL FMALE 24POS 0.100
Series：892
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：12
Number of Positions：24
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 892-024-520-204

892-024-520-204

Edgeboard Connectors Overview

The EDAC Inc. 892-024-520-204 is a high-temperature card edge connector receptacle from the 892 series. It features 24 positions with a 0.100-inch (2.54mm) contact spacing and 0.200-inch (5.08mm) row spacing. Designed for vertical panel mount installation, it accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component utilizes copper alloy contacts with gold plating and a polyphenylene sulfide housing, rated for 3A current and operating between -40°C and +125°C.

Edgeboard Connectors Feature Summary

Vertical panel mount receptacle design
High-temperature polyphenylene sulfide insulator body
Gold-plated copper alloy contacts for reliable signal transmission

Edgeboard Connectors Applications

Industrial control systems requiring thermal stability
Medical equipment interconnects
Harsh environment electronic assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm exact pin count, termination style, and insulation material. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm RoHS compliance status through official manufacturer documentation before finalizing procurement specifications.

Edgeboard Connectors Selection Notes

Select this component when vertical orientation and panel mounting are required. The 0.100-inch pitch suits standard digital signaling applications. Verify that the 3A current rating meets system requirements. Consider the high-temperature range if the application exceeds standard commercial limits.

Edgeboard Connectors Part Context

This part belongs to the EDAC 892 series of high-temperature card edge connectors. The series is engineered for durability in demanding environments. The 892 designation indicates specific mechanical and electrical characteristics distinct from other EDAC connector families.
