892-098-540-201

Edgeboard Connectors Overview

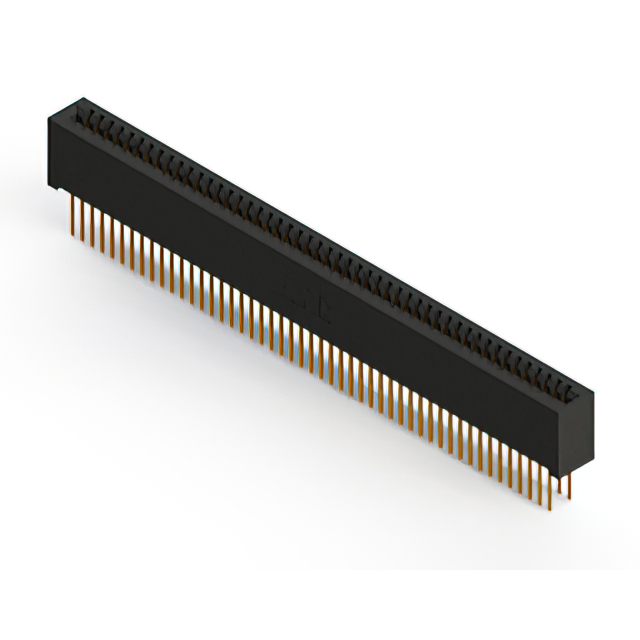

The EDAC Inc. 892-098-540-201 is a dual-edge female card edge connector designed for high-temperature applications. It features 98 positions with a 0.100-inch (2.54mm) pitch and accepts board thicknesses between 0.054 and 0.070 inches. The contacts are gold-plated copper alloy with a 10.0µin thickness, housed in black polyphenylene sulfide (PPS). Rated for -40°C to +125°C, it utilizes wire wrap termination.

Edgeboard Connectors Feature Summary

• High-temperature operation capability up to +125°C using PPS insulation
• Gold-plated contact surfaces ensuring reliable signal transmission
• Wire wrap termination method for secure circuit board attachment

Edgeboard Connectors Applications

• Industrial control systems requiring thermal stability
• High-reliability electronic assemblies
• Panel-mounted interconnect solutions

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm exact termination style and mounting configuration. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status through official datasheets. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance and wire wrap termination are required. Verify that the 98-position count matches the design requirements. Ensure the panel mount style fits the enclosure constraints. Check that the 0.100-inch pitch aligns with the mating card edge layout.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 892 series of standard card edge receptacles. The series offers various position counts and termination options. The 892 series is characterized by its robust construction and suitability for demanding environments. It serves as a reliable interface between printed circuit boards and backplanes or cables.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 892 Series Ordering Guide for verified substitute part numbers. Ensure any replacement maintains identical pitch, position count, and termination type. Verify thermal ratings and material specifications match the original design requirements.
