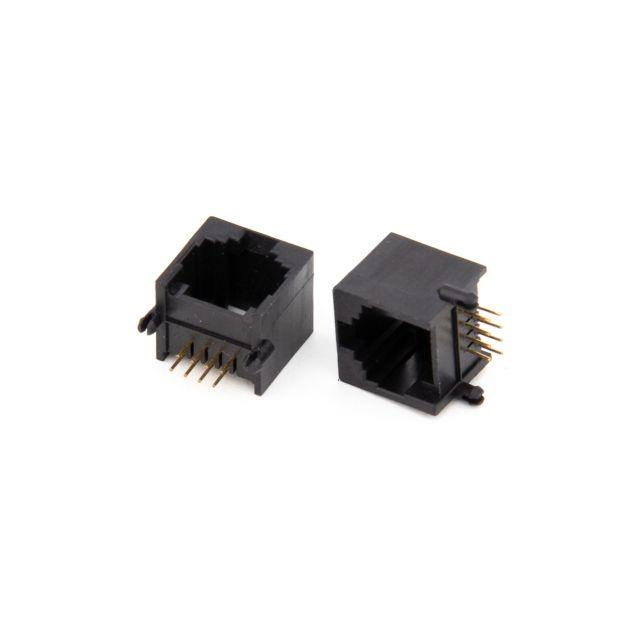

ModularEthernet Connector (RJ45, RJ11) Jacks 8949-F164-06YNA product image

8949-F164-06YNA

$0.43

Description：RoHS, No Flange Modular Jack
Series：8949-F1
Mfr：Oupiin
Package：Tray

SKU:08e8b99b3317 Category: ModularEthernet Connector (RJ45, RJ11) Jacks Brand: Oupiin

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

8949-F164-06YNA is listed in the ModularEthernet Connector (RJ45, RJ11) Jacks range at ChipApex. The manufacturer field lists Oupiin. Its product description is RoHS, No Flange Modular Jack. Review the specifications below when checking this part for your BOM.

ModularEthernet Connector (RJ45, RJ11) Jacks specifications for 8949-F164-06YNA

Description：RoHS, No Flange Modular Jack
Series：8949-F1
Mfr：Oupiin
Package：Tray
Connector Type：Jack
Number of Positions/Contacts：6p4c (RJ11, RJ14)
Number of Ports：1
Number of Rows：1
Mounting Type：Through Hole
Orientation：90° Angle (Right)
Termination：Solder
Shielding：Unshielded
Ratings：-
Features：-
LED Color：Does Not Contain LED
Ingress Protection：-
Tab Direction：Up
Contact Material：Phosphor Bronze
Contact Finish：Gold

ModularEthernet Connector (RJ45, RJ11) Jacks datasheet and documents for 8949-F164-06YNA
